| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
39 pcs
|
39 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board | |
| Board Pitch | |
| Cable Pitch | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge |

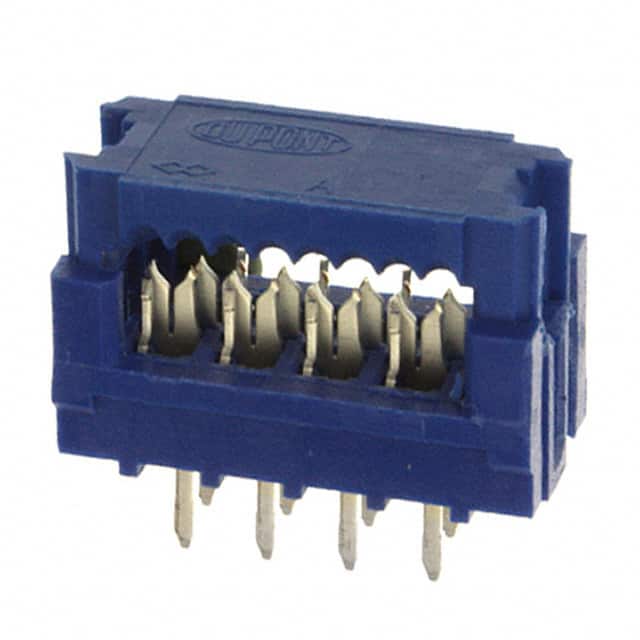

The Amphenol ICC 69830-008LF is an 8 position ribbon cable DIP header connector with IDC termination. It features two rows of contacts with a board pitch of 0.100" (2.54mm) and a cable pitch of 0.050" (1.27mm), making it suitable for standard flat ribbon cable connections. The row spacing is also 0.100" (2.54mm).
The connector is designed for through hole mounting and accepts 26-28 AWG stranded or solid wire. Contacts are finished with 150µin (3.81µm) of tin. The blue insulator includes a feed through feature, allowing daisy-chain or pass-through wiring. This connector is commonly used in board-to-cable interconnects requiring reliable IDC termination without soldering.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.24 | $1.24 |
| 10+ | $1.05 | $1.05 |
| 39+ | $0.96 | $0.96 |
| 78+ | $0.91 | $0.91 |
| 117+ | $0.88 | $0.88 |
| 273+ | $0.83 | $0.83 |
| 507+ | $0.80 | $0.80 |
| 1,014+ | $0.76 | $0.76 |
| 2,535+ | $0.71 | $0.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This DIP header has 8 positions arranged in 2 rows.
The board pitch is 0.100" (2.54mm).
It uses through hole mounting with IDC cable termination.
It accepts 26-28 AWG stranded or solid wire.
The contacts have a tin finish with 150µin (3.81µm) thickness.
