| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
226 pcs
|
226 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board | |
| Cable Pitch | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Wire Gauge |

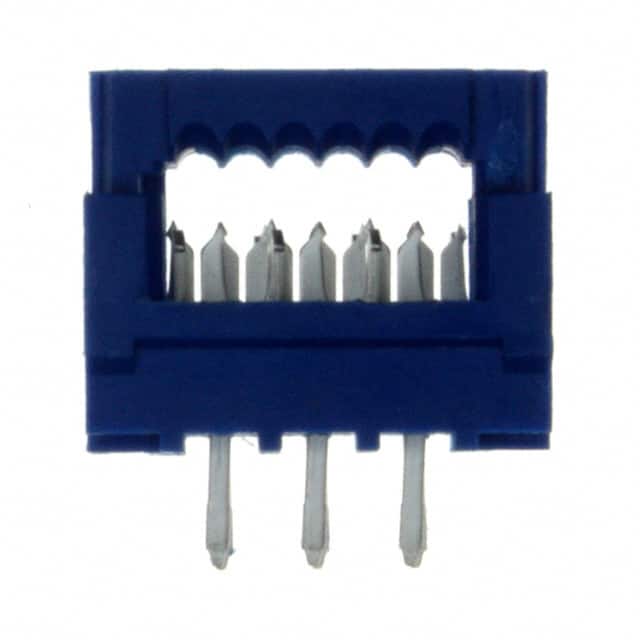

The 69830-006LF is a male IDC connector from the Quickie series by Amphenol ICC. It features 6 positions in a 2x3 arrangement with a 2.54mm contact pitch and a 1.27mm cable pitch. The connector supports 26-28 AWG stranded or solid wire and uses IDC termination for ribbon cable connections.
Electrical ratings include 1A current capacity and 1kV voltage rating. The connector has a straight orientation and is mounted via through-hole (THT) with IDC termination. Contacts are finished with tin, and the housing is colored blue.
This connector is designed for board-to-wire applications where a reliable, low-profile connection is needed. It is suitable for use in various electronic assemblies and industrial equipment. The manufacturer packaging method is tube, containing 47 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.92 | $0.92 |
| 10+ | $0.78 | $0.78 |
| 47+ | $0.70 | $0.70 |
| 94+ | $0.67 | $0.67 |
| 141+ | $0.65 | $0.65 |
| 282+ | $0.62 | $0.62 |
| 517+ | $0.59 | $0.59 |
| 1,034+ | $0.56 | $0.56 |
| 2,538+ | $0.53 | $0.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions in a 2x3 layout.
2.54 mm (0.100 inch).
Rated for 1 kV and 1 A.
Through hole (THT) with IDC termination.
26-28 AWG stranded or solid wire.
