| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,350 pcs
|
2350 pcs | On Request | 1 | On Request | On Request | 14+/15+ | On Request | On Request | |
|
139 pcs
|
139 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Type |

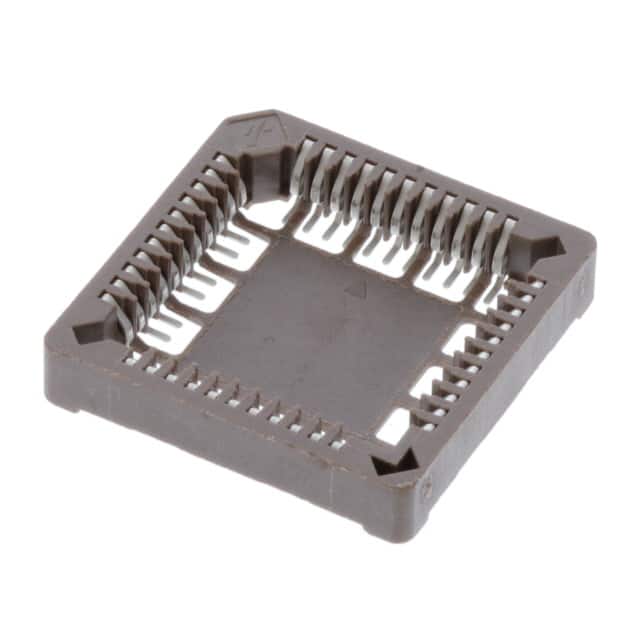

The Amphenol ICC 69802-444LF is a 44-position PLCC socket designed for use with PLCC-44 packaged ICs. It features a 1.27mm (0.050") pitch and surface mount solder termination, enabling compact and reliable connections on printed circuit boards.
The socket employs an open frame construction which allows for improved airflow and easier inspection of solder joints. Contacts are made of phosphor bronze with a tin-lead finish (150µin / 3.81µm thickness), providing good conductivity and solderability. The housing is molded from polyphenylene sulfide (PPS) with glass fill, offering high temperature resistance and dimensional stability over the operating temperature range of -55°C to 125°C.
This socket is suitable for programming, testing, and production deployment of PLCC devices in applications where surface mount assembly is preferred. The open frame design also facilitates cleaning and visual inspection. Compliance data (RoHS, REACH, MSL) has not been independently verified and should be confirmed with the manufacturer for specific application requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.66 | $2.66 |
| 10+ | $2.26 | $2.26 |
| 25+ | $2.11 | $2.11 |
| 50+ | $2.01 | $2.01 |
| 100+ | $1.92 | $1.92 |
| 250+ | $1.80 | $1.80 |
| 500+ | $1.71 | $1.71 |
| 750+ | $1.66 | $1.66 |
| 1,250+ | $1.60 | $1.60 |
| 1,750+ | $1.57 | $1.57 |
| 2,500+ | $1.53 | $1.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
44 positions configured as 4 x 11.
1.27mm (0.050").
Surface mount with solder termination.
-55°C to 125°C.
Phosphor bronze with a tin-lead finish (150µin / 3.81µm).
Polyphenylene sulfide (PPS), glass filled.
