| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
335 pcs
|
335 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Socket Type | |
| Termination | |
| Termination Style | |
| Type |

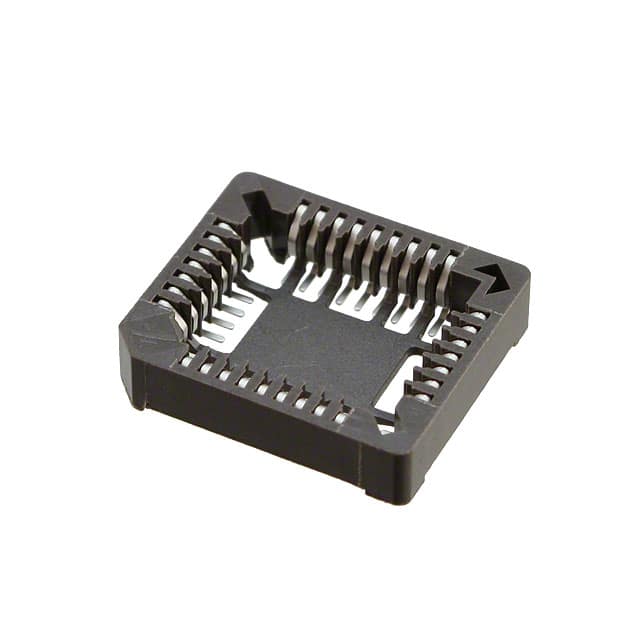

The 69802-432LF is a PLCC socket designed for 32-position ICs. It features a 1.27mm (0.050") pitch and surface mount termination, enabling compact and reliable connections. The closed frame housing is made of Polyphenylene Sulfide (PPS), providing high temperature resistance and mechanical stability. Contacts are made of phosphor bronze with a tin finish of 150µin (3.81µm), ensuring good conductivity and corrosion resistance. The socket operates over a wide temperature range from -55°C to 125°C, making it suitable for demanding environments. This socket is typically used in programming and production applications for PLCC devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.93 | $1.93 |
| 10+ | $1.64 | $1.64 |
| 25+ | $1.53 | $1.53 |
| 50+ | $1.46 | $1.46 |
| 100+ | $1.39 | $1.39 |
| 390+ | $1.26 | $1.26 |
| 780+ | $1.20 | $1.20 |
| 1,170+ | $1.17 | $1.17 |
| 1,950+ | $1.13 | $1.13 |
| 2,730+ | $1.10 | $1.10 |
| 3,900+ | $1.07 | $1.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
32 positions arranged as 2 x 7 and 2 x 9.
1.27mm (0.050").
Surface mount.
-55°C to 125°C.
Tin with 150µin (3.81µm) thickness.
Polyphenylene Sulfide (PPS).
RoHS3 Compliant (unverified).
