| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
381 pcs
|
381 pcs | On Request | 1 | On Request | On Request | 1027 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Type |

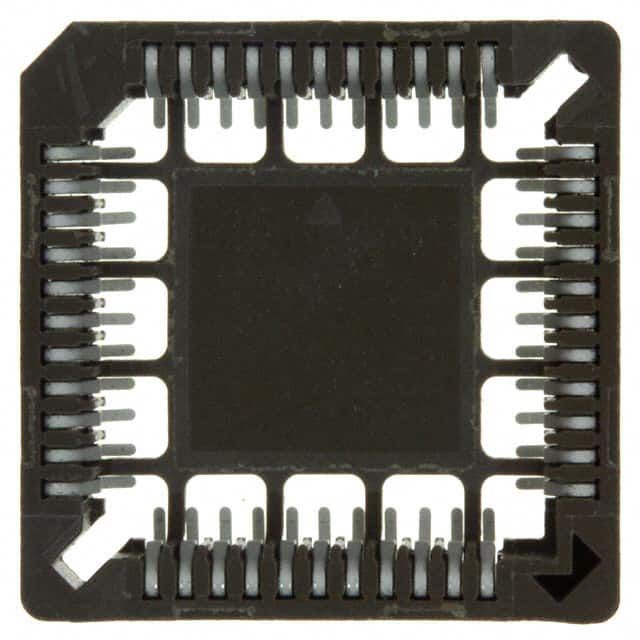

The 69802-044LF is a PLCC socket manufactured by Amphenol ICC. It features 44 positions arranged in a 4x11 grid with a 1.27mm (0.050") pitch. The socket is designed for surface mount applications and uses solder termination. Contacts are made of phosphor bronze with a tin finish of 150.0µin (3.81µm). The housing is molded from polyphenylene sulfide (PPS), a high-temperature thermoplastic. The socket operates over a temperature range of -55°C to 125°C and features a closed frame design for secure IC retention. This socket is suitable for programming, testing, and production use with PLCC-44 packaged devices. It is RoHS compliant (unverified) and has an MSL rating of 1 (unlimited). The closed frame construction provides mechanical stability and protection during handling and reflow soldering.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.35 | $1.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
44 positions (4x11).
1.27mm (0.050").
Surface mount.
Tin with 150µin thickness.
Polyphenylene sulfide (PPS).
-55°C to 125°C.
Yes, closed frame.
