| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,000 pcs
|
11000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Industrial Grade | |
| Insulation | |
| Lead Style | |
| Length | |
| Military Grade | |
| Mounting Type | |
| Stud | |
| Stud Size | |
| Terminal Type | |
| Termination | |
| Thickness | |
| Width | |
| Wire Gauge |

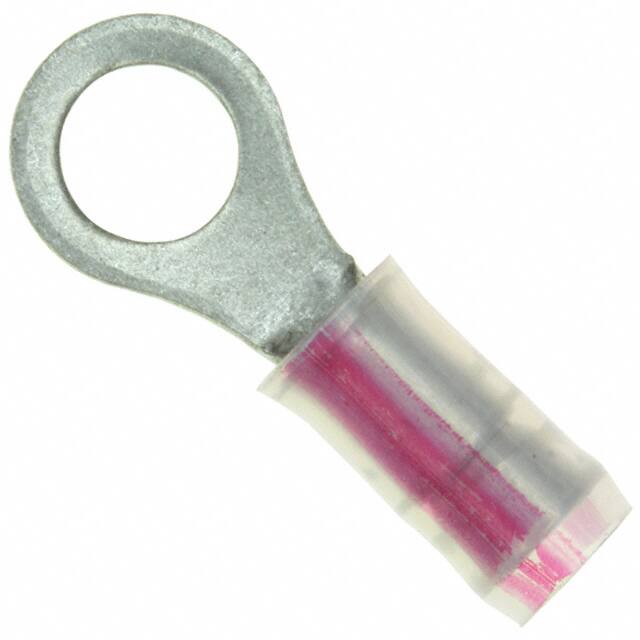

The TE Connectivity 696422-6 is an insulated ring terminal designed for 16-22 AWG wire with a #10 stud size. It features a circular terminal type with crimp termination, suitable for free hanging (in-line) mounting.
Constructed from tin-plated copper, the terminal measures 21.56mm in length, 7.92mm in width, and has a thickness of 0.79mm. The natural finish with a red stripe provides visual identification. Serrated termination enhances wire retention, and the insulation is radiation resistant.
This ring connector is part of TE's terminal and splice product family, designed for reliable electrical connections in various wire-to-stud applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.24 | $1.24 |
| 10+ | $1.05 | $1.05 |
| 25+ | $0.99 | $0.99 |
| 50+ | $0.94 | $0.94 |
| 100+ | $0.89 | $0.89 |
| 250+ | $0.84 | $0.84 |
| 500+ | $0.80 | $0.80 |
| 1,000+ | $0.76 | $0.76 |
| 3,000+ | $0.70 | $0.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16-22 AWG.
#10 stud.
Crimp termination.
Yes, insulated.
Free hanging (in-line).
Copper contact with tin finish.
Length 21.56mm, width 7.92mm, thickness 0.79mm.
