| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,600 pcs
|
1600 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Flammability Rating | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Insulator Material | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Orientation | |
| Packaging Method | |
| Pitch | |
| Protection Class | |
| Protection Rate | |
| Rated Current (Nominal @ UL) | |
| Rated Current (Nominal @ VDE) | |
| Rated Power Acceptance (VDE) | |
| Shock Safe Category | |
| Termination Style | |
| Voltage | |
| Withstanding Voltage | |
| Working Voltage |

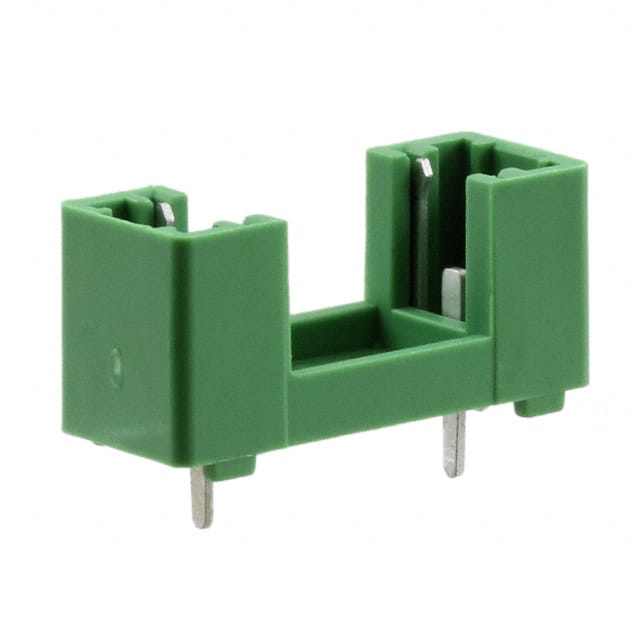

The 696106003002 is a THT (through-hole) fuseholder block from Würth Elektronik's WR-FSH series. It accepts standard 5x20mm cartridge fuses and is designed for PCB mounting with a 15mm pitch. The fuseholder features a clip cover design and is rated for 20A under UL standards and 6.3A under VDE standards, with a working voltage of 250VAC. Withstanding voltage is 1500VAC, and contact resistance is typically 5mΩ (max 10mΩ).
The insulator is made of PA6/66 with UL94 V-0 flammability rating, colored green. Contacts are copper alloy with tin over nickel plating. The operating temperature range is -30°C to +120°C. Protection class is I & II, and shock-safe category is PC1. The fuseholder is IP00 rated.
This component is suitable for general electronics equipment requiring reliable fuse protection. It is RoHS and lead-free compliant. Packaging is in boxes. The part is active with an expected lifetime greater than 10 years.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.64 | $0.64 |
| 10+ | $0.61 | $0.61 |
| 50+ | $0.58 | $0.58 |
| 100+ | $0.52 | $0.52 |
| 250+ | $0.46 | $0.46 |
| 500+ | $0.37 | $0.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The UL current rating is 20A, and the VDE current rating is 6.3A.
250VAC (UL/VDE).
5mm x 20mm cartridge fuses.
Through-hole with 15mm pitch.
-30°C to +120°C.
Yes, RoHS3 compliant and lead-free.
PA6/66 with UL94 V-0.
