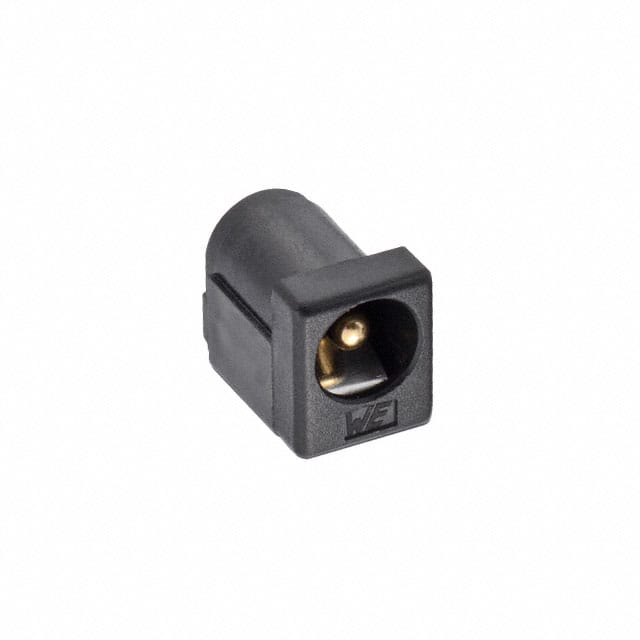

The 694108301002 is a DC power jack manufactured by Würth Elektronik, part of the WR-DC series. It is designed for through hole, right angle mounting on printed circuit boards, making it suitable for space-constrained applications. The connector has an industry-recognized mating diameter of 2.50mm inner diameter and 5.50mm outer diameter, with actual diameters of 2.55mm ID and 6.40mm OD. It is rated for 5A continuous current and 30 VDC working voltage, with a contact resistance of 50 mΩ max and insulation resistance greater than 100 MΩ. The dielectric withstanding voltage is 500 VAC/min. The center pin contact is gold plated, while the center pin terminal, shunt terminal, and tip spring are tin plated. The insulator material is PA66 with a UL94-V0 flammability rating. The connector features a single switch, normally closed, and is unshielded. It is RoHS compliant and lead free, with an operating temperature range of -40°C to 85°C. The packaging is in bags with a standard quantity of 500 pcs per bag, 2000 pcs per box, and 8000 pcs per carton. This component is intended for general electronic equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.97 | $0.97 |
| 10+ | $0.92 | $0.92 |
| 50+ | $0.82 | $0.82 |
| 100+ | $0.76 | $0.76 |
| 500+ | $0.66 | $0.66 |
| 1,000+ | $0.60 | $0.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 Conductors, 3 Contacts
5 A
30 VDC
Through Hole, Right Angle
-40°C to 85°C
Copper alloy with gold plating on center pin, tin on center pin terminal, shunt terminal, and tip spring.
Yes, RoHS compliant and lead free.
