| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,190 pcs
|
1190 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Durability | |
| Gender | |
| Halogen Free | |
| Height Above Board | |
| Insertion, Removal Method | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Rated Current | |
| Shielding Material | |
| Tape & Reel | |
| Type | |
| Withstanding Voltage | |
| Working Voltage |

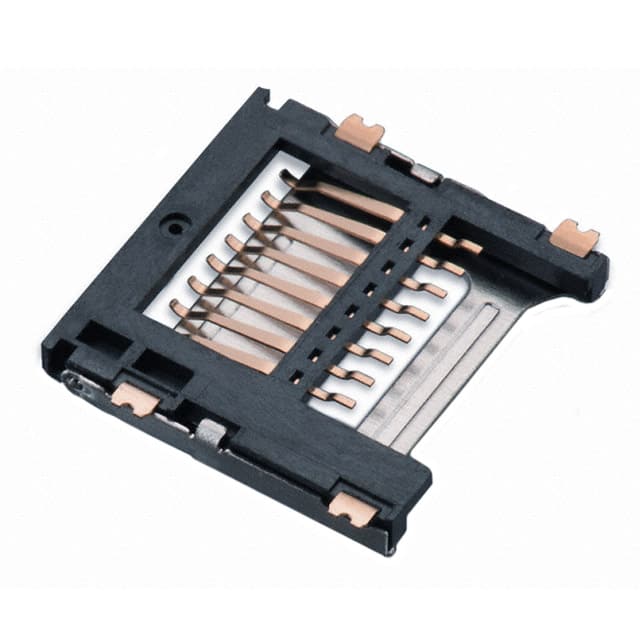

The Würth Elektronik 693072010801 is a WR-CRD series microSD card connector featuring a hinged lid insertion and removal mechanism. It provides 8 positions in a socket (receptacle) gender configuration and is designed for surface mount, right angle mounting.
This connector is rated for a current of 0.5 A and a working voltage of 100 V AC, with a withstanding voltage of 500 V AC for 1 minute. Contact resistance is a maximum of 100 mΩ, and insulation resistance is a minimum of 1000 MΩ. The insulator is made of LCP (Liquid Crystal Polymer) with a UL94 V-0 flammability rating, and contacts are copper alloy with gold plating. The shielding material is stainless steel.
The connector has a height above board of 1.75 mm and is rated for 10,000 mating cycles. It operates over a temperature range of -25 °C to +85 °C. The part is RoHS, REACH, and Halogen Free compliant, with an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $3.41 | $3.41 |
| 10+ | $3.34 | $3.34 |
| 50+ | $2.94 | $2.94 |
| 100+ | $2.81 | $2.81 |
| 500+ | $2.41 | $2.41 |
| 1,200+ | $2.10 | $2.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 8 positions.
Surface Mount, Right Angle.
0.5 A.
-25 to +85 °C.
10,000 mating cycles.
Secure Digital - microSD™.
Gold.
