| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
410 pcs
|
410 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
180 pcs
|
180 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request | |
|
47 pcs
|
47 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Contact Type | |
| Durability | |
| Features | |
| Gender | |
| Halogen Free | |
| Height Above Board | |
| Industrial Grade | |
| Insertion, Removal Method | |
| Insulation Resistance | |
| Insulator Color | |
| Insulator Material | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Rated Current | |
| Tape & Reel | |
| Type | |
| Withstanding Voltage | |
| Working Voltage |

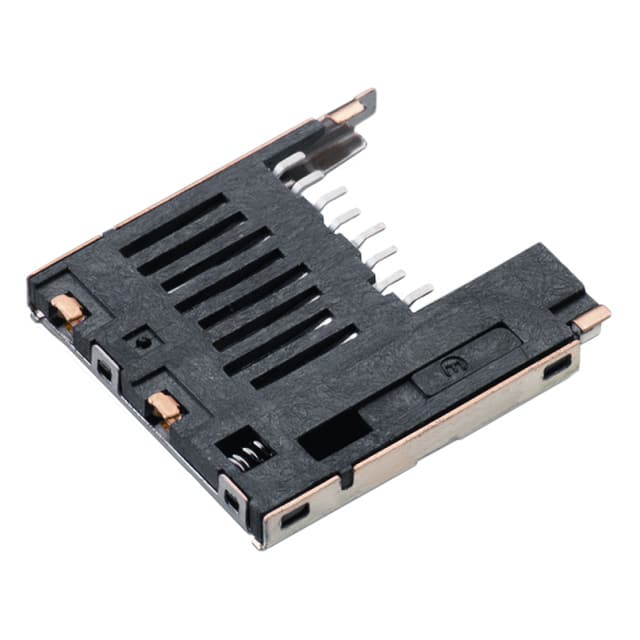

The Würth Elektronik 693071010811 is a microSD card connector from the WR-CRD series, designed for secure digital memory card applications. It features a push-push (push in, push out) insertion and ejection mechanism, making it suitable for applications where card retention and easy removal are required. The connector is surface mounted at a right angle, with a height above board of 1.83 mm, enabling compact designs.
This connector has 9 positions (8 data/control pins plus one card detection switch) and is rated for 0.5 A current and 100 V AC working voltage. Contact resistance is 100 mΩ maximum, and insulation resistance is 1000 MΩ minimum. The operating temperature range is -25 °C to +85 °C, and the durability is rated at 10,000 mating cycles.
The insulator is made of black LCP (Liquid Crystal Polymer), the cover is stainless steel, and the contacts are copper alloy with selective gold plating. The connector is RoHS, REACH, and Halogen Free compliant. Packaging is Tape and Reel with Mylar, suitable for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.11 | $3.11 |
| 10+ | $3.04 | $3.04 |
| 50+ | $2.68 | $2.68 |
| 100+ | $2.56 | $2.56 |
| 500+ | $2.19 | $2.19 |
| 1,400+ | $1.91 | $1.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Secure Digital - microSD™.
9 positions (8 + 1).
Push In, Push Out (push-push).
Surface Mount, Right Angle.
Rated current is 0.5 A and working voltage is 100 V AC.
-25 °C to +85 °C.
10,000 mating cycles.
