| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
65 pcs
|
65 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Contact Type | |
| Features | |
| Gender | |
| Halogen Free | |
| Height Above Board | |
| Insertion, Removal Method | |
| Insulation Resistance | |
| Insulator Color | |
| Insulator Flammability Rating | |
| Insulator Material | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Positions | |
| Operating Temperature Range | |
| Rated Current | |
| Shielding Material | |
| Tape & Reel | |
| Termination Style | |
| Withstanding Voltage | |
| Working Voltage |

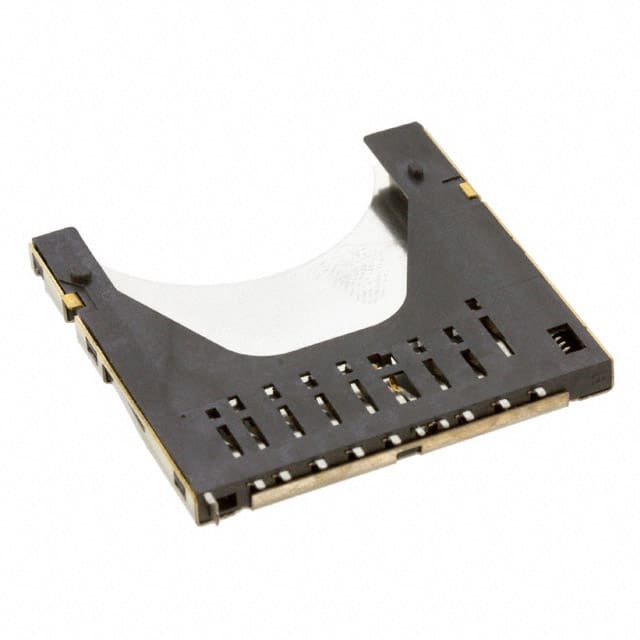

The Würth Elektronik 693061010911 is a WR-CRD series SD card connector designed for secure digital memory cards. It features a push-push (push in, push out) insertion and removal mechanism with card detection switch. The connector has 9 stamped copper alloy contacts with selective gold plating and a stainless steel shield. It is surface mounted at a right angle with a height above board of 2.85 mm. The insulator is black LCP rated UL94 V-0. Electrical ratings include 0.5 A rated current, 100 V AC working voltage, 500 V AC withstanding voltage for 1 minute, contact resistance 100 mΩ max, and insulation resistance 1000 MΩ min. Operating temperature range is -25 °C to +85 °C with a durability of 10,000 mating cycles. This connector is RoHS3, REACH, and halogen free compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.34 | $5.34 |
| 10+ | $5.22 | $5.22 |
| 50+ | $4.60 | $4.60 |
| 100+ | $4.39 | $4.39 |
| 200+ | $3.76 | $3.76 |
| 400+ | $3.57 | $3.57 |
| 800+ | $3.28 | $3.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Surface Mount, Right Angle.
9 contacts.
-25 °C to +85 °C.
Rated current 0.5 A, working voltage 100 V AC.
Push In, Push Out (push-push).
Yes, RoHS3 compliant per 2011/65/EU & 2015/863.
10,000 mating cycles.
