| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Contact Type | |
| Features | |
| Gender | |
| Halogen Free | |
| Height Above Board | |
| Industrial Grade | |
| Insertion, Removal Method | |
| Insulation Resistance | |
| Insulator Color | |
| Insulator Material | |
| Lead Style | |
| Mating Cycles | |
| Medical Grade | |
| Military Grade | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Rated Current | |
| SVHC Present | |
| Tape & Reel | |
| Withstanding Voltage | |
| Working Voltage |

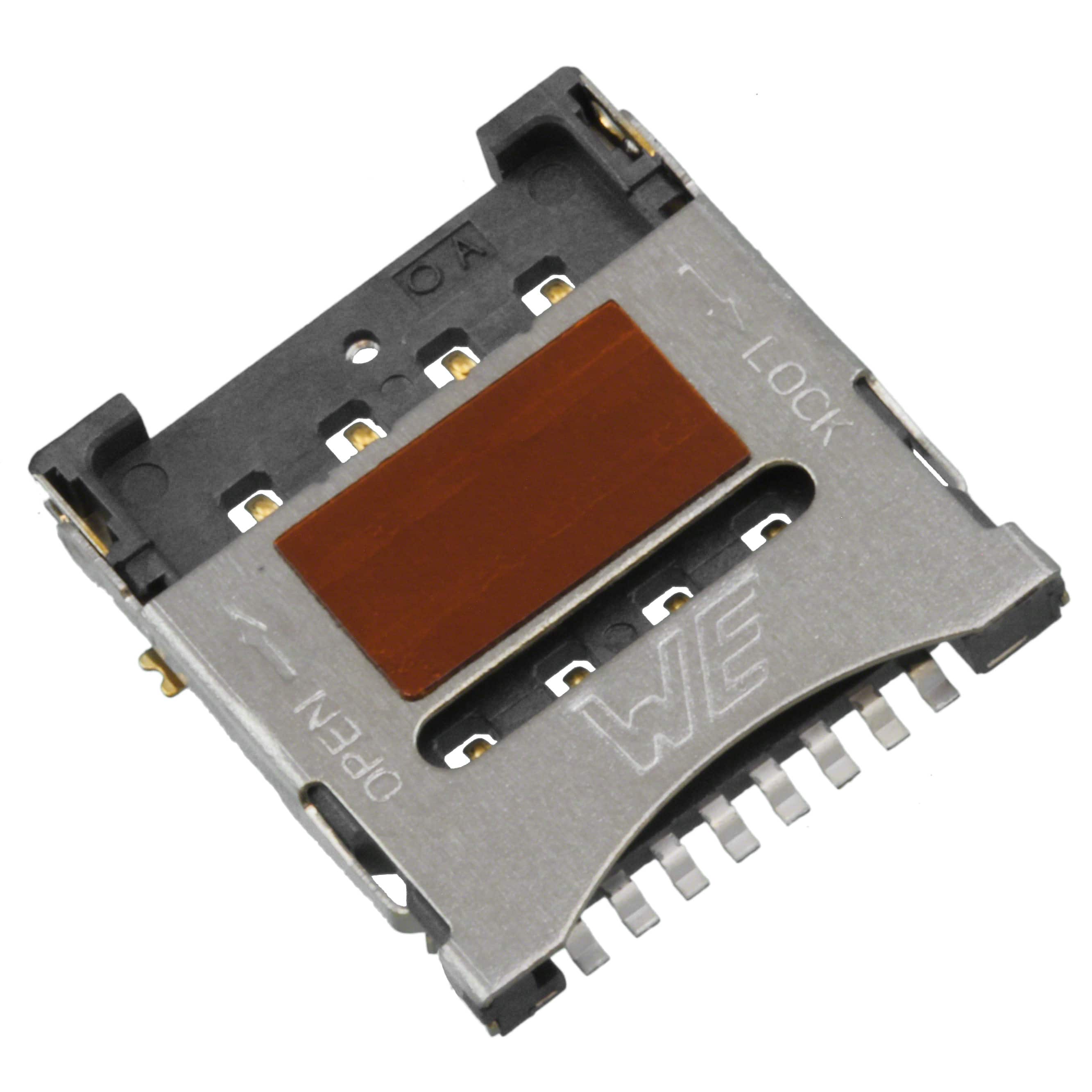

The Würth Elektronik 693022010811 is a WR-CRD series Micro SIM card connector designed for reliable card insertion and retention. It features a hinged lid insertion/removal mechanism and a surface mount, right angle mounting style. The connector is shielded for EMI protection and offers 8 positions with gold-plated stamped contacts for reliable signal integrity.
Electrical ratings include a rated current of 1 A per pin, working voltage of 15 V AC, and withstanding voltage of 500 V AC for 1 minute. Contact resistance is 30 mΩ maximum per pin, and insulation resistance is 1000 MΩ minimum. The operating temperature range is -25°C to +85°C.
The insulator is made of black LCP material with UL94 V-0 flammability rating. The connector is rated for 2500 mating cycles and has a height above board of 1.95 mm. It is RoHS, REACH, and Halogen Free compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.89 | $1.89 |
| 10+ | $1.73 | $1.73 |
| 50+ | $1.60 | $1.60 |
| 100+ | $1.48 | $1.48 |
| 500+ | $1.28 | $1.28 |
| 1,000+ | $1.22 | $1.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector accepts Micro SIM cards.
The connector has 8 positions.
Surface mount, right angle.
-25°C to +85°C.
1 A per pin.
Gold (selective gold plating).
Yes, it is shielded.
