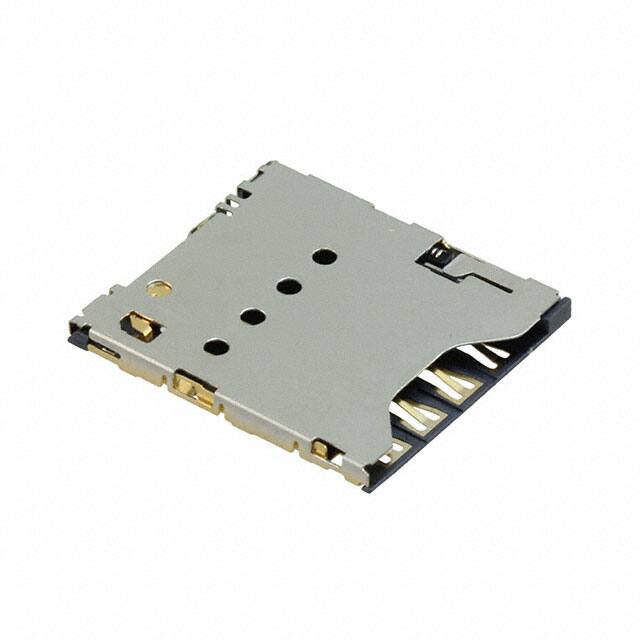

693021010811 Micro SIM card connector from Würth Elektronik with 9 (8+1) positions, surface mount right angle, push in/push out ejection. Features gold contacts, shielding, and card detection switch.
Mfr Part #:

693021010811

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Micro SIM card connector from Würth Elektronik with 9 (8+1) positions, surface mount right angle, push in/push out ejection. Features gold contacts, shielding, and card detection switch.
✓ Total Stock: 64 pcs

693021010811 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
64 pcs
On Request
64 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

693021010811 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Type
Connector Type
Contact Finish
Features
Height Above Board
Insertion, Removal Method
Lead Style
Mounting Feature
Mounting Type
Number of Positions
SVHC Present
View Similar Products (0)

693021010811 Description

Short technical summary and product information.

The Würth Elektronik 693021010811 is a Micro SIM card connector designed for surface mount right angle mounting. It features a push in/push out ejection mechanism and accommodates Micro SIM cards. The connector has 9 positions (8 + 1) with gold-plated contacts for reliable connectivity. It includes a shield for EMI protection and an integrated switch for card detection. The mounting feature is normal, standard - top. This connector is part of the WE-ConCARD series. Note: This product has been discontinued (End of Life as of April 2021).

693021010811 Quick Information

Product Type: Micro SIM Card Connector
Series: WE-ConCARD-Series
Canonical Name: Micro SIM Card Connector, 9 (8+1) Positions, Surface Mount Right Angle, Push In/Push Out, Shielded with Switch
Subcategory: Micro SIM Card Connector

693021010811 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

693021010811 Features

  • Micro SIM card connector with push-push ejection.
  • 9 positions (8 + 1) with gold contacts.
  • Surface mount right angle mounting.
  • Shielded design with integrated switch.
  • Height above board 1.25 mm.

693021010811 Applications

  • Used in mobile devices and IoT modules.
  • Ideal for SIM card interfaces in embedded systems.
  • Suitable for space-constrained PCB designs.

693021010811 FAQs

7 frequently asked questions generated from this part’s specifications.
What type of card does this connector support?

Micro SIM card.

How many positions does the connector have?

9 (8 + 1) positions.

What is the mounting type?

Surface mount, right angle.

What is the ejection method?

Push in, push out.

What is the contact finish?

Gold.

Does the connector have shielding?

Yes, it is shielded and includes a switch.

What is the height above board?

1.25 mm.
