692904100000 WR-COM USB 3.0 Cable Assembly, A Male to Micro B Male, 1.0m length, shielded, blue, rated 2.5A max and 30V AC.
Mfr Part #:

692904100000

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
WR-COM USB 3.0 Cable Assembly, A Male to Micro B Male, 1.0m length, shielded, blue, rated 2.5A max and 30V AC.
✓ Total Stock: 41 pcs
$ Price Range: $12.38 - $13.47

692904100000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
41 pcs
On Request
41 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

692904100000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Color
Configuration
Contact Material
Contact Resistance
Durability
Features
Insulator Flammability Rating
Length
Medical Grade
Military Grade
Rated Current
Shielding
Specifications
Tape & Reel
Working Voltage
View Similar Products (0)

692904100000 Description

Short technical summary and product information.

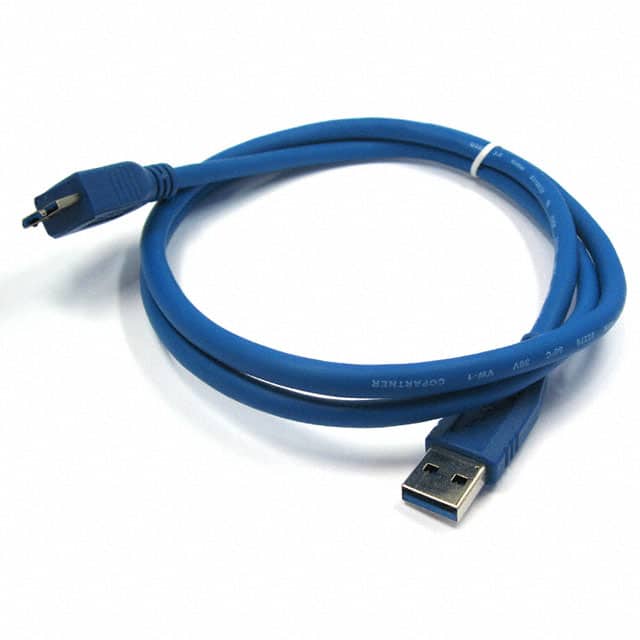

The Würth Elektronik 692904100000 is a WR-COM USB 3.0 cable assembly featuring a USB A Male to Micro B Male configuration. The cable is 1.0 meter in length, shielded, and comes in a blue jacket. It supports USB 3.2 Gen 1 (also known as USB 3.1 Gen 1 and USB 3.0) for data transfer and charging.



Electrical ratings include a maximum rated current of 2.5 A and a nominal working voltage of 30 V AC. The contacts are made of copper alloy with a maximum contact resistance of 50 mΩ. The connector is rated for a minimum of 5000 mating cycles, ensuring durability in repeated use.



The insulator has a VW-1 flammability rating per IEC 332-1. The assembly is RoHS3 compliant, REACH unaffected, and CE conform. It is designed for general electronic equipment and is not authorized for use in safety-critical applications without specific agreement.

692904100000 Quick Information

Product Type: USB Cable Assembly
Series: WR-COM
Canonical Name: WR-COM USB 3.0 Cable Assembly, A Male to Micro B Male, 1.0m, Shielded
Subcategory: USB 3.0 Cables

692904100000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

692904100000 Estimated Pricing

Qty Low High
150+ $13.47 $13.47
300+ $12.38 $12.38

Estimated market price range - modelled values for guidance only, not live distributor offers.

692904100000 Features

  • USB 3.2 Gen 1 data transfer and charging.
  • Shielded cable with 1.0 meter length.
  • Rated for 2.5A max current and 30V AC.
  • Copper alloy contacts with 5000 mating cycles.
  • VW-1 flammability rated insulator.

692904100000 Applications

  • Connect USB peripherals to host devices.
  • Data transfer between smartphones and computers.
  • Charging portable electronics with Micro B input.
  • General purpose USB 3.0 connectivity in equipment.

692904100000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the USB standard of this cable?

USB 3.2 Gen 1 (also known as USB 3.1 Gen 1 and USB 3.0).

What is the maximum current rating?

2.5 A maximum.

What is the working voltage?

30 V AC nominal.

Is this cable RoHS compliant?

Yes, RoHS3 compliant per 2011/65/EU&2015/863.

What is the cable length?

1.0 meter (3.28 feet).

What is the connector configuration?

USB A Male to Micro B Male.

How many mating cycles is the connector rated for?

Minimum 5000 mating cycles.
