| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Conflict Minerals | |
| Connector Type | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Feature | |
| Features | |
| Gender | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Mating Cycles | |
| Medical Grade | |
| Military Grade | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Pins | |
| SVHC Present | |
| Shielding | |
| Shielding Material | |
| Shielding Plating | |
| Specifications | |
| Termination | |
| Termination Style | |
| Voltage | |
| Voltage - Working | |
| Withstanding Voltage |

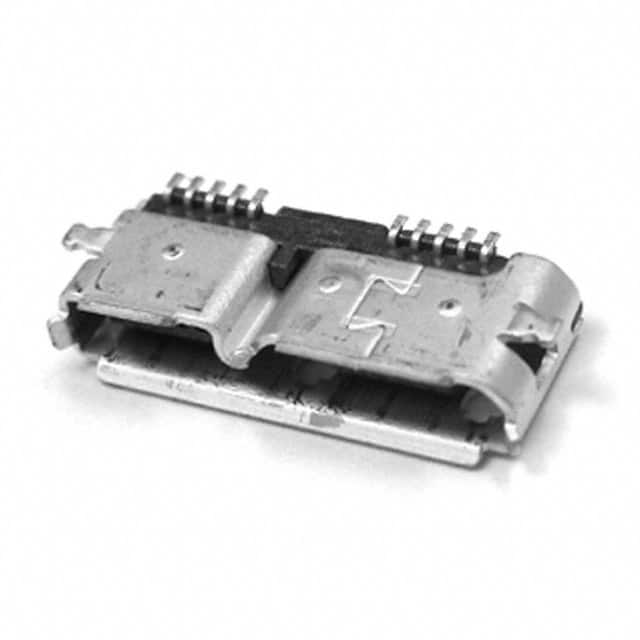

The Würth Elektronik 692622030100 is a USB 3.2 Gen 1 (USB 3.0) Micro B receptacle connector designed for high-speed data transfer and power delivery. It features a right-angle surface mount design for space-constrained PCB layouts, with a shielded housing to minimize electromagnetic interference. The connector has 10 contacts (5 for USB 2.0 and 5 for SuperSpeed) and supports a current rating of 1.8A on VBUS/ground pins and 0.25A on signal pins, with a working voltage of 30VAC.
Electrical characteristics include a maximum contact resistance of 50 mΩ, minimum insulation resistance of 100 MΩ, and a withstanding voltage of 100VAC. The operating temperature range is -20°C to +85°C, and the connector is rated for a minimum of 10,000 mating cycles. The insulator is made of LCP, contacts are phosphor bronze with matte tin over nickel plating, and the shield is steel with matte tin plating.
This connector includes a solder retention feature for reliable mounting during reflow soldering. It is compliant with RoHS, REACH, and Halogen Free standards. The WR-COM series is suitable for consumer electronics, portable devices, and other applications requiring a compact, high-speed USB interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.13 | $3.13 |
| 10+ | $2.76 | $2.76 |
| 50+ | $2.60 | $2.60 |
| 100+ | $2.34 | $2.34 |
| 500+ | $2.27 | $2.27 |
| 1,500+ | $2.15 | $2.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)).
1.8 A (VBUS/ground); 0.25 A (signal pins).
30 VAC.
Surface Mount, Right Angle.
10.
-20°C to +85°C.
Yes, shielded.
