| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,100 pcs
|
2100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Storage Temperature | |
| Tab Direction | |
| Termination | |
| Termination Style |

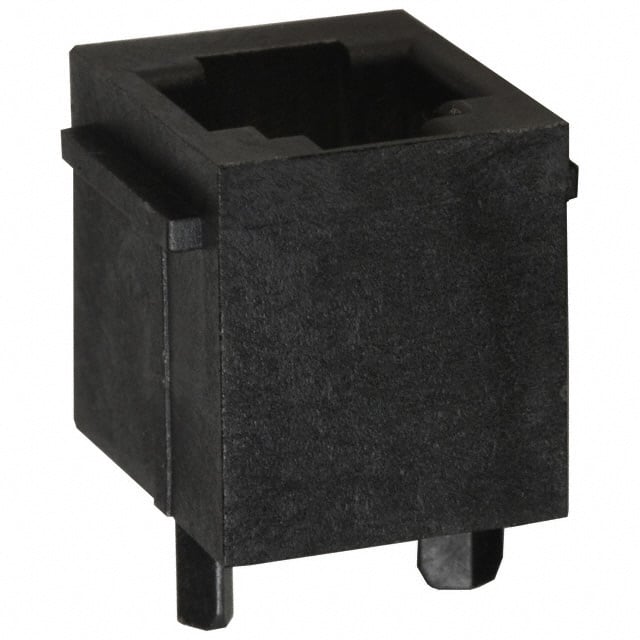

The Amphenol ICC 69254-001LF is a modular connector jack designed for 6-position 6-contact (6P6C) configurations, supporting RJ11, RJ12, RJ14, and RJ25 standards. It features a vertical orientation and through-hole mounting with solder termination, making it suitable for PCB applications where space is limited.
This unshielded jack is rated Category 3 (Cat3), appropriate for voice and low-speed data transmission up to 16 MHz. The contacts are made of copper alloy with a gold finish, ensuring reliable electrical connections and corrosion resistance. The connector includes board guide and panel stops for secure alignment during assembly.
The 69254-001LF is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). It does not contain an LED indicator. The user-selectable tab direction offers flexibility in panel mounting orientation.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.97 | $1.97 |
| 10+ | $1.67 | $1.67 |
| 35+ | $1.53 | $1.53 |
| 70+ | $1.46 | $1.46 |
| 105+ | $1.42 | $1.42 |
| 280+ | $1.32 | $1.32 |
| 525+ | $1.26 | $1.26 |
| 1,015+ | $1.21 | $1.21 |
| 2,520+ | $1.13 | $1.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a modular jack with 6 positions and 6 contacts (6P6C), supporting RJ11, RJ12, RJ14, and RJ25 standards.
It is a through-hole mount component with solder termination, oriented vertically.
No, it is unshielded.
The contacts are made of copper alloy with a gold finish.
It is rated Category 3 (Cat3).
