| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
560 pcs
|
560 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Style |

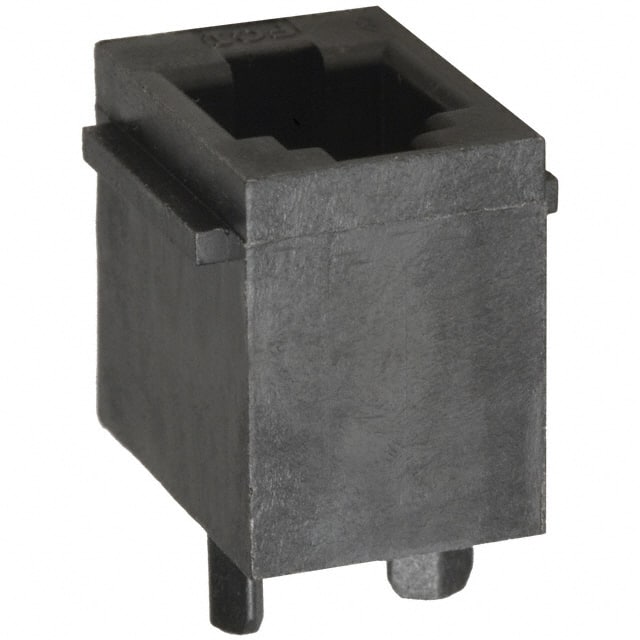

The Amphenol ICC 69253-001LF is a modular connector jack designed for 4p4c (RJ9, RJ10, RJ22) configurations. It offers a single port with a vertical orientation and through hole mounting, making it suitable for PCB applications where space is limited.
This unshielded jack features gold-plated copper alloy contacts for reliable signal transmission and corrosion resistance. The connector includes board guide and panel stops for secure alignment during assembly. It is rated Cat3, supporting voice and low-speed data applications.
The termination style is solder, ensuring a robust connection to the PCB. The tab direction is user selectable, providing flexibility in cable orientation. This component does not contain an LED indicator.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.79 | $1.79 |
| 10+ | $1.52 | $1.52 |
| 40+ | $1.38 | $1.38 |
| 80+ | $1.31 | $1.31 |
| 120+ | $1.27 | $1.27 |
| 280+ | $1.20 | $1.20 |
| 520+ | $1.15 | $1.15 |
| 1,000+ | $1.10 | $1.10 |
| 2,520+ | $1.03 | $1.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector type is a jack (modular jack).
It has 4p4c positions, compatible with RJ9, RJ10, and RJ22.
The mounting type is through hole.
No, it is unshielded.
The contact finish is gold.
It is rated Cat3.
