| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
75 pcs
|
75 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
57 pcs
|
57 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Connector Type | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flammability Rating | |
| Gender | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Mating Cycles | |
| Medical Grade | |
| Military Grade | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Shielding Material | |
| Shielding Plating | |
| Specifications | |
| Termination | |
| Voltage | |
| Voltage Rating | |
| Withstanding Voltage |

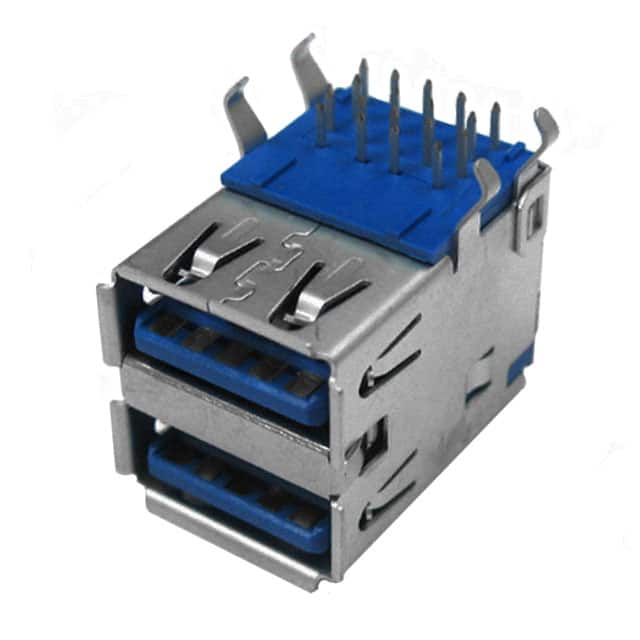

The Würth Elektronik WR-COM USB 3.0 Stacked Type A Receptacle (order code 692141030100) is a 2-port, 18-pin USB connector assembly designed for high-speed data interfaces. It supports USB 3.2 Gen 1 (also known as USB 3.1 Gen 1 and USB 3.0 Superspeed) for data transfer rates up to 5 Gbps.
This receptacle features a through hole, right angle mounting orientation for horizontal PCB placement. The insulator is made of LCP (Liquid Crystal Polymer) with a UL94 V-0 flammability rating. Contacts are phosphor bronze with selective gold plating, and the shield is brass with matte tin plating. The connector includes a board lock feature for secure attachment.
Electrical ratings include a nominal current of 1.8 A per contact (signal contacts rated 0.25 A), voltage rating of 30 VAC, contact resistance of 50 mΩ maximum, insulation resistance of 100 MΩ minimum, and withstanding voltage of 100 VAC for 1 minute. The operating temperature range is -40°C to 85°C, with a minimum of 5000 mating cycles. RoHS, REACH, and Halogen Free compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.78 | $5.78 |
| 10+ | $5.10 | $5.10 |
| 50+ | $4.81 | $4.81 |
| 100+ | $4.32 | $4.32 |
| 250+ | $3.92 | $3.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal current rating is 1.8 A per contact. Signal contacts are rated at 0.25 A.
The voltage rating is 30 VAC.
Through hole, right angle (horizontal) mounting.
USB 3.2 Gen 1 (also known as USB 3.1 Gen 1 and USB 3.0 Superspeed).
-40°C to 85°C.
A minimum of 5000 mating cycles.
Yes, it is RoHS compliant (2011/65/EU & 2015/863).
