| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Gender | |
| Halogen Free | |
| Insulation Resistance | |
| Insulator Flammability Rating | |
| Insulator Material | |
| Lead Style | |
| Mating Cycles | |
| Military Grade | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Operating Temperature Range | |
| Orientation | |
| Rated Current | |
| SVHC Present | |
| Shielding | |
| Shielding Material | |
| Shielding Plating | |
| Specifications | |
| Termination | |
| Voltage | |
| Withstanding Voltage | |
| Working Voltage |

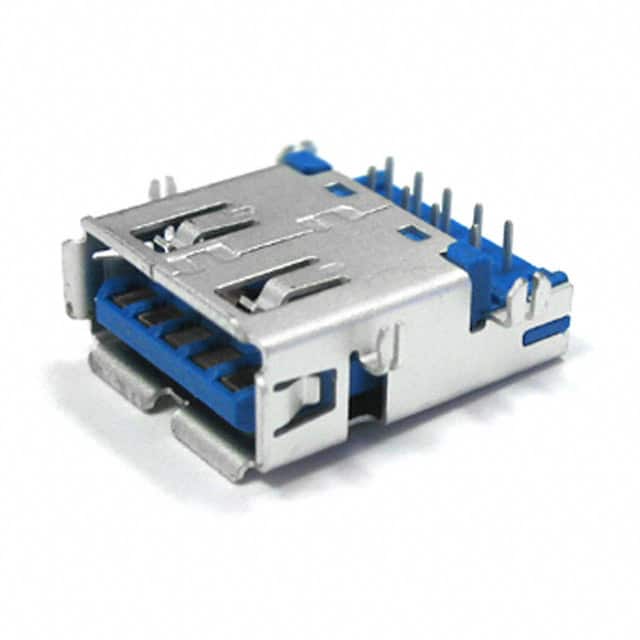

The Würth Elektronik 692121230100 is a USB 3.2 Gen 1 (USB 3.0/3.1 Gen 1) Type-A receptacle connector with 9 contacts. It features a through hole, right angle mounting with horizontal orientation and mid mount feature for PCB edge or cutout placement. The connector is fully shielded with a brass shell plated with matte tin over nickel, providing effective EMI protection.
Electrically, the connector is rated for 1.8A continuous current and 30VAC working voltage, with a contact resistance of 50 mΩ max and insulation resistance of 100 MΩ min. The operating temperature range spans -20°C to 85°C, making it suitable for various environments. The insulator is made of LCP with UL94 V-0 flammability rating, and contacts are phosphor bronze with matte tin over nickel plating.
Mechanical durability is rated at 5000 mating cycles, ensuring long-term reliability. The connector complies with RoHS, REACH, Halogen Free (IEC 61249-2-21, JEDEC JS709B), and UL standards (E323964). It is designed for applications in office computing, industrial automation, consumer electronics, and audio-visual systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.13 | $3.13 |
| 10+ | $2.76 | $2.76 |
| 50+ | $2.60 | $2.60 |
| 100+ | $2.34 | $2.34 |
| 300+ | $2.02 | $2.02 |
| 600+ | $1.99 | $1.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 contacts (for USB 3.x).
1.8A.
30VAC.
Through hole, right angle (horizontal orientation).
USB 3.2 Gen 1 (also known as USB 3.0/3.1 Gen 1).
-20°C to 85°C.
Yes, shielded with brass shell and matte tin over nickel plating.
