| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

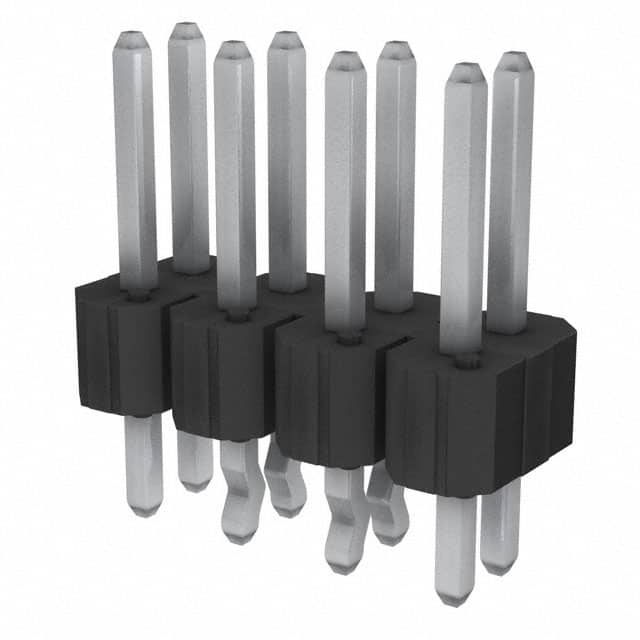

This 8-position header connector from Amphenol ICC is designed for board-to-board applications. It has 2 rows with a 2.54mm pitch and uses through hole mounting with kinked pin solder termination. The male pin contacts are square-shaped, made of phosphor bronze, and plated with tin (2.54µm thickness). The insulator is unshrouded, black, rated UL94 V-0, and operates from -65°C to 130°C. The contact length is 5.84mm and overall contact length is 11.43mm, with an insulation height of 2.54mm. All 8 positions are loaded, and the connector is rated for 3A current per contact.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.38 | $0.38 |
| 10+ | $0.32 | $0.32 |
| 400+ | $0.25 | $0.25 |
| 800+ | $0.24 | $0.24 |
| 1,200+ | $0.23 | $0.23 |
| 5,200+ | $0.21 | $0.21 |
| 10,000+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 8 positions in 2 rows.
The pitch is 2.54mm (0.100").
The current rating is 3A per contact.
Through hole mounting with kinked pin solder termination.
-65°C to 130°C.
Tin with thickness 2.54µm (100.0µin).
UL94 V-0.
