| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

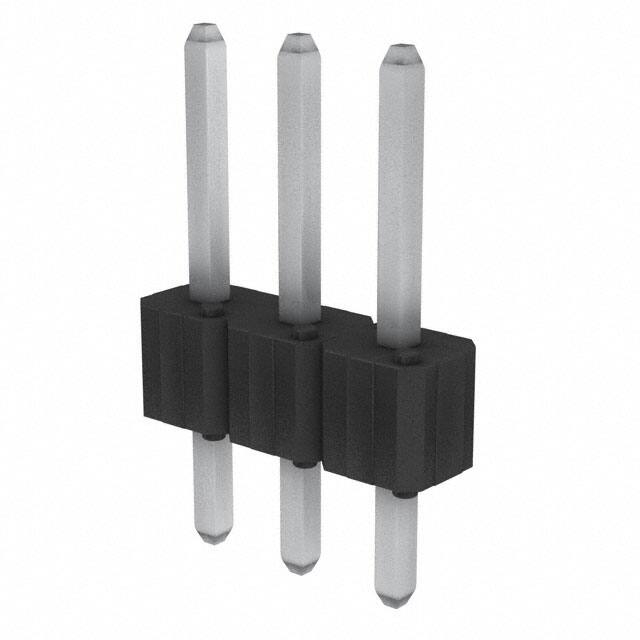

The Amphenol ICC 69190-403HLF is a 3 position, single row, unshrouded header designed for board-to-board applications. It features a 2.54mm (0.100") pitch and through hole mounting with press-fit or solder termination. The header uses square male pin contacts made of phosphor bronze with a tin finish (100.0µin thickness).
The insulator is black glass-filled PCT (Polycyclohexylenedimethylene Terephthalate) with a UL94 V-0 flammability rating. The push-pull fastening type allows easy mating and unmating. The overall contact length is 0.450" (11.43mm) with a contact length of 5.84mm (0.230") and an insulation height of 2.54mm (0.100").
This header is rated for 3A current and operates over a temperature range of -65°C to 130°C. All 3 positions are loaded. The part is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.23 | $0.23 |
| 10+ | $0.20 | $0.20 |
| 100+ | $0.17 | $0.17 |
| 500+ | $0.15 | $0.15 |
| 4,000+ | $0.13 | $0.13 |
| 8,000+ | $0.12 | $0.12 |
| 12,000+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions, all loaded, in a single row.
2.54mm (0.100").
3A.
Through hole, with press-fit or solder termination.
-65°C to 130°C.
Phosphor bronze contacts with a tin finish (100.0µin thickness).
RoHS3 Compliant (unverified).
