| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Resistance | |
| Current | |
| Current Rating | |
| Features | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Screw Size | |
| Tape & Reel | |
| Torque | |
| Voltage | |
| Wire Gauge | |
| Wire Termination | |
| Withstanding Voltage |

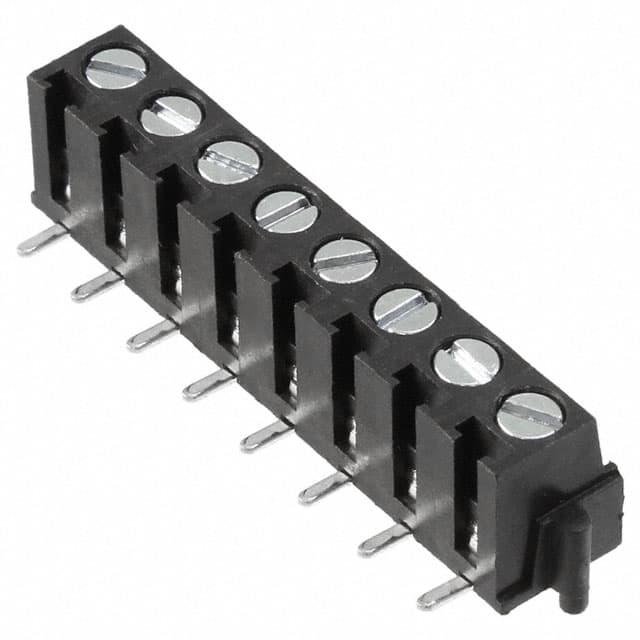

The Würth Elektronik 691709710308 is an 8-position, single-level wire-to-board terminal block from the WR-TBL 7097 series. It features a 5.00mm pitch and a horizontal (side) entry orientation for mating with the board. The terminal block uses a screw with leaf spring and wire guard termination method, accommodating solid or stranded wire from 30-14 AWG (0.0508-2.08 mm²) with a strip length of 7-8mm.
Electrically, this component is rated for 6A current and 300V working voltage, with a withstanding voltage of 1.6kV and maximum contact resistance of 20mOhm. The insulator is made of high-temperature PA46 in black, with a brass (CuZn) metal housing, steel zinc-plated terminal screws (M3), and a stainless steel wire guard. The recommended tightening torque is 3.5 lb-in (0.4 Nm).
Designed for surface mount assembly, the component is compatible with JEDEC lead-free reflow soldering processes. It operates over a temperature range of -40°C to 130°C and carries a UL94 V-0 flammability rating. The product is RoHS compliant and lead-free, with UL standard certification E315414. It is packaged in tape and reel with cap for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.62 | $7.62 |
| 10+ | $7.30 | $7.30 |
| 50+ | $6.86 | $6.86 |
| 100+ | $6.50 | $6.50 |
| 200+ | $6.08 | $6.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This terminal block has 8 positions in a single level.
The pitch is 5.00mm (0.197 inches).
It is rated for 6A current and 300V working voltage.
It accepts solid or stranded wire from 30-14 AWG (0.0508-2.08 mm²).
It is a surface mount component designed for horizontal entry with the board.
It operates from -40°C to 130°C.
Yes, it is RoHS compliant and lead-free.
