691709710306

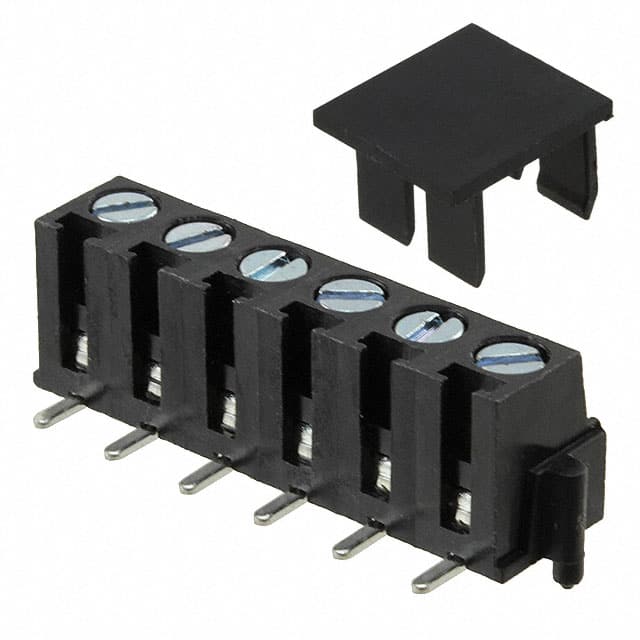

The Würth Elektronik 691709710306 is a 6-position rising cage clamp terminal block from the WR-TBL Series 7097. It features a 5.00mm pitch and horizontal wire entry, designed for surface mount (SMT) applications. The terminal block accepts wire gauges from 14 to 30 AWG (solid or stranded) with a strip length of 7-8 mm. The screw termination uses an M3 screw with a torque rating of 0.4 Nm and a leaf spring, wire guard mechanism. The insulator is made of PA46 (black) with a flammability rating of UL94 V-0. Electrical ratings include a current rating of 6 A, working voltage of 300 VAC, and a maximum contact resistance of 20 mOhm. The operating temperature range is -40°C to +130°C. The product is certified cULus (E315414) and complies with RoHS and lead-free requirements. Packaging is Tape and Reel with Cap, suitable for automated assembly. The board guide feature aids in alignment during PCB mounting. This terminal block is suitable for general electronic equipment requiring reliable wire-to-board connections in a compact SMT package.
