691701550012B The 691701550012B is a 12-position, 5.08mm pitch terminal block header from Würth Elektronik's WR-TBL series. It features a right-angle, through-hole mounting with shrouded male pins and a mating flange, rated for 15A (cULus) and 300V (AC).
Mfr Part #:

691701550012B

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
The 691701550012B is a 12-position, 5.08mm pitch terminal block header from Würth Elektronik's WR-TBL series. It features a right-angle, through-hole mounting with shrouded male pins and a mating flange, rated for 15A (cULus) and 300V (AC).
✓ Total Stock: 4,500 pcs
$ Price Range: $6.22

691701550012B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
4,500 pcs
On Request
4500 pcs On Request 6 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691701550012B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Features
Header Orientation
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

691701550012B Description

Short technical summary and product information.

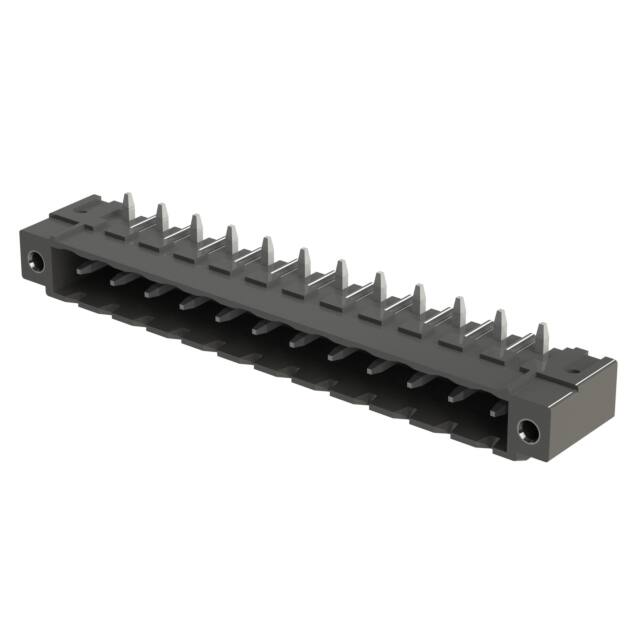

The Würth Elektronik 691701550012B is a 12-position, 5.08mm pitch terminal block header from the WR-TBL 7015B series. It features a right-angle, through-hole mounting orientation with shrouded male pins and a mating flange for secure locking with compatible plug connectors. The header is rated for a current of 15 A (cULus) and a working voltage of 300 V (AC), with a withstand voltage of 1600 V (AC).



The insulator is made of LCP (Liquid Crystal Polymer) with a UL 94-V0 flammability rating. The operating temperature range is -40°C to +130°C, making it suitable for industrial environments. The contacts are tin-plated for reliable electrical connections. The header is RoHS compliant and UL approved under file number E315414.



Typical applications include industrial control systems, power supply units, and factory automation equipment. Designers should refer to application notes ANE006 (derating of connectors) and ANE015 (inrush current for connectors) for proper current handling. The right-angle design allows for low-profile board-to-wire connections in space-constrained assemblies.

691701550012B Quick Information

Product Type: Terminal Block Header
Series: 7015B
Canonical Name: WR-TBL Series 7015B PCB Header, 5.08mm Pitch, 12 Positions, Right Angle, Through Hole, Shrouded
Subcategory: Pluggable Connector Header

691701550012B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

691701550012B Estimated Pricing

Qty Low High
250+ $6.22 $6.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

691701550012B Features

  • 12-position, 5.08mm pitch right-angle header.
  • Rated for 15A (cULus) and 300V (AC).
  • Shrouded male pins with mating flange design.
  • Through-hole mounting with solder termination.
  • LCP insulator with UL 94-V0 rating.

691701550012B Applications

  • Industrial control systems and automation.
  • Power supply and distribution units.
  • Ideal for pluggable terminal block connections.
  • Suitable for factory automation equipment.

691701550012B FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 691701550012B have?

The header has 12 positions.

What is the pitch of this terminal block header?

The pitch is 5.08mm (0.200 inches).

What is the current rating of the 691701550012B?

The rated current is 15A per cULus standards (also listed as 10A under general rating).

What is the voltage rating?

The working voltage is 300V (AC) with a withstand voltage of 1600V (AC).

What is the mounting type and orientation?

It is through-hole mounted with a right-angle (90°) orientation.

What is the operating temperature range?

The operating temperature range is -40°C to +130°C.

Is the header UL approved?

Yes, it has UL approval E315414 with a flammability rating of UL 94-V0.
