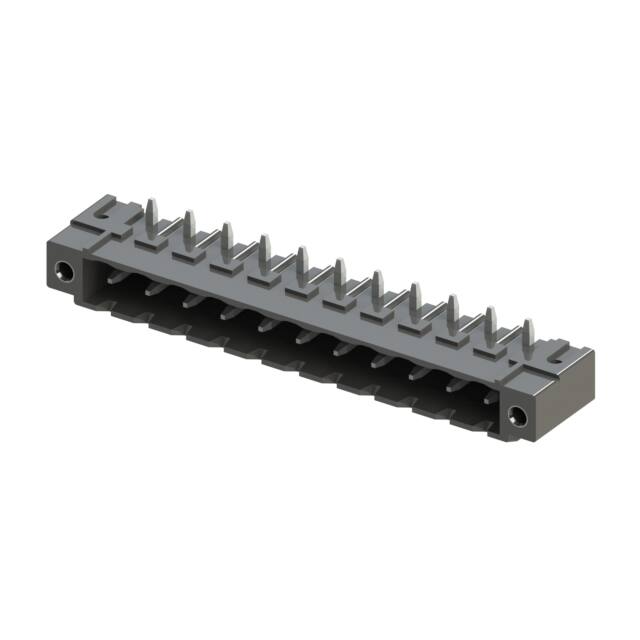

691701550011B This is a WR-TBL Series 7015 PCB header from Würth Elektronik with 11 positions at 5.08mm pitch. It features a right-angle shrouded design with through-hole solder termination and tin-plated brass pins.
Mfr Part #:

691701550011B

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
This is a WR-TBL Series 7015 PCB header from Würth Elektronik with 11 positions at 5.08mm pitch. It features a right-angle shrouded design with through-hole solder termination and tin-plated brass pins.
✓ Total Stock: 200 pcs
$ Price Range: $5.75

691701550011B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 10 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691701550011B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Contact Resistance
Current
Current Rating
Features
Header Orientation
Insulator Flammability Rating
Insulator Material
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

691701550011B Description

Short technical summary and product information.

The Würth Elektronik 691701550011B is a WR-TBL Series 7015 PCB header designed for terminal block interconnect applications. This shrouded header offers 11 positions arranged in a single level with a 5.08mm pitch, making it suitable for power and signal distribution in a variety of industrial and commercial equipment.



Electrical ratings include a current rating of 10 A (with higher ratings under specific certifications: 15 A cULus, 18 A VDE) and a voltage rating of 300 V AC (cULus) or 400 V AC (VDE). The contact resistance is a maximum of 20 mΩ, ensuring reliable connections. The header is housed in a black LCP insulator with a UL94 V-0 flammability rating, and features tin over nickel plating on brass pins for corrosion resistance.



Mechanically, the part mounts via through-hole soldering and is oriented at a 90-degree right angle for horizontal wire entry. A mating flange feature (M2.5 screw) is included for secure connection to the mating plug. The operating temperature range is -40°C to +105°C, suitable for demanding environments.

691701550011B Quick Information

Product Type: PCB Header
Series: 7015
Canonical Name: WR-TBL Series 7015 PCB Header, Horizontal Entry, 11 Positions, 5.08mm Pitch, Right Angle, Shrouded, Through Hole, Solder Termination
Subcategory: Terminal Block Headers

691701550011B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

691701550011B Estimated Pricing

Qty Low High
250+ $5.75 $5.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

691701550011B Features

  • Shrouded right-angle header with M2.5 mating flange.
  • 11 positions, 5.08mm pitch, single level.
  • Rated for 10A at 300V AC (cULus).
  • Through-hole solder termination for reliable connection.
  • LCP insulator rated UL94 V-0 for flame resistance.

691701550011B Applications

  • Used in industrial control and automation systems.
  • Ideal for power supply and distribution boards.
  • Suitable for signal and sensor interconnect applications.
  • Common in building automation and HVAC equipment.
  • Designed for use with WR-TBL mating plugs.

691701550011B FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 691701550011B have?

This header has 11 positions.

What is the pitch of this terminal block header?

The pitch is 5.08mm.

What is the current rating of the 691701550011B?

It has a current rating of 10 A; certified ratings are 15 A (cULus) and 18 A (VDE).

What is the voltage rating of this header?

The voltage rating is 300 V (cULus) and 400 V (VDE).

What type of mounting does this part use?

It is a through-hole mounting component with solder termination.
