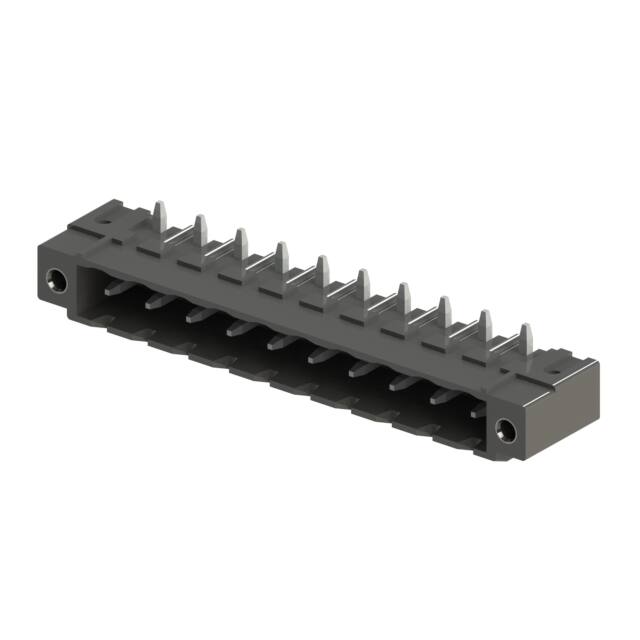

691701550010B WR-TBL Series 7015 PCB header, 10 positions, 5.08mm pitch, right angle, through hole, shrouded (4 side), with mating flange. Rated 10A at 300V.
Mfr Part #:

691701550010B

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
WR-TBL Series 7015 PCB header, 10 positions, 5.08mm pitch, right angle, through hole, shrouded (4 side), with mating flange. Rated 10A at 300V.
✓ Total Stock: 28 pcs
$ Price Range: $5.52

691701550010B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
28 pcs
On Request
28 pcs On Request 10 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691701550010B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Contact Resistance
Current
Features
Header Orientation
Insulator Flammability Rating
Insulator Material
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

691701550010B Description

Short technical summary and product information.

The Würth Elektronik 691701550010B is a WR-TBL Series 7015 PCB header designed for terminal block interconnect applications. This component features 10 positions arranged in a single level with a 5.08mm pitch, and a right-angle orientation for horizontal cable entry. The header is shrouded on four sides and includes a mating flange for secure connection.



Electrical ratings include a current rating of 10A and a voltage rating of 300V. The header is rated for 15A (cULus) and 18A (VDE) with working voltages of 300V (cULus) and 400V (VDE). Withstanding voltage is 1600V (cULus) and 2200V (VDE). Contact resistance is 20 mΩ maximum. Operating temperature range is -40°C to +130°C.



The header uses a through-hole mounting with solder termination. The insulator is made of LCP (black) with a UL94 V-0 flammability rating. Pins are brass with tin over nickel plating. The flange screw is M2.5. Overall length is 60.96 mm with a pin-to-pin middle distance of 45.72 mm.

691701550010B Quick Information

Product Type: Terminal Block Header
Series: 7015
Canonical Name: WR-TBL Series 7015 PCB Header, 10 Position, 5.08mm Pitch, Right Angle, Through Hole, Shrouded (4 Side)
Subcategory: Shrouded Header

691701550010B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

691701550010B Estimated Pricing

Qty Low High
250+ $5.52 $5.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

691701550010B Features

  • 10 positions with 5.08mm pitch.
  • Right angle orientation for horizontal entry.
  • Shrouded header with mating flange.
  • Rated 10A at 300V.
  • Through hole solder termination.

691701550010B Applications

  • Ideal for industrial control and automation.
  • Used in power supply and distribution systems.
  • Suitable for building and lighting applications.
  • Common in HVAC and security equipment.

691701550010B FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of this header?

The pitch is 5.08mm (0.200 inches).

How many positions does this header have?

This header has 10 positions in a single level.

What is the current rating?

The current rating is 10A. cULus rated 15A, VDE rated 18A.

What is the voltage rating?

The voltage rating is 300V. cULus working voltage 300V AC, VDE working voltage 400V AC.

What is the mounting type?

Through hole with solder termination.

What is the operating temperature range?

-40°C to +130°C.

What is the insulator material and flammability rating?

LCP (Liquid Crystal Polymer) with UL94 V-0 rating.
