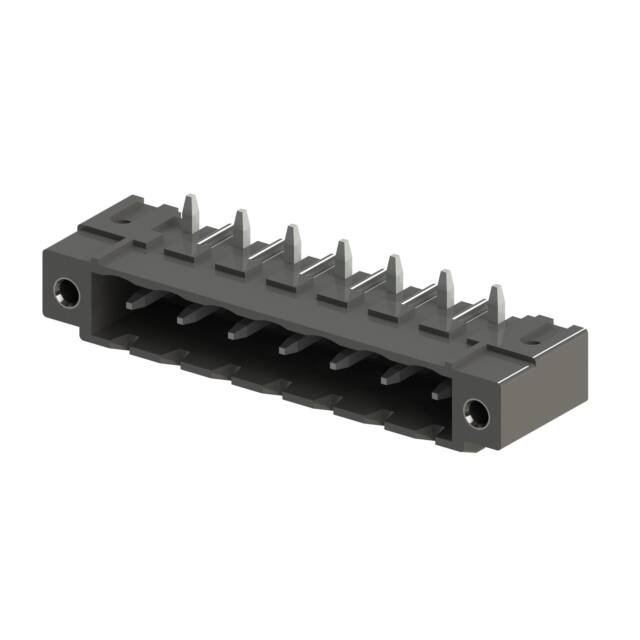

691701550007B This 7-position 5.08mm pitch terminal block header from Würth Elektronik features a right angle orientation and shrouded design. It is rated for 300V and 10A with a tin contact finish.
Mfr Part #:

691701550007B

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
This 7-position 5.08mm pitch terminal block header from Würth Elektronik features a right angle orientation and shrouded design. It is rated for 300V and 10A with a tin contact finish.
✓ Total Stock: 250 pcs
$ Price Range: $4.51

691701550007B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
250 pcs
On Request
250 pcs On Request 5 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691701550007B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Tape & Reel
Termination Style
Type
Voltage
View Similar Products (0)

691701550007B Description

Short technical summary and product information.

This product is a 7-position terminal block header with a 5.08mm pitch, designed for through-hole mounting. The header is shrouded on four sides and features a right angle orientation, making it suitable for compact PCB layouts where space is limited. The black housing and tin-plated contacts ensure reliable electrical connections. Electrical ratings include 300V and 10A, with an operating temperature range of -40°C to 105°C. The header includes a mating flange for secure connection to the corresponding plug. Termination is via solder pins. Compliance with RoHS3 and REACH is claimed, though unverified. This component is commonly used in industrial control, automation, and power distribution applications.

691701550007B Quick Information

Product Type: Header, Male Pins, Shrouded (4 Side)
Canonical Name: 7 Position 5.08mm Pitch Right Angle Shrouded Header, Through Hole, Solder, Black, Tin Contact Finish
Subcategory: Terminal Block Headers

691701550007B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

691701550007B Estimated Pricing

Qty Low High
250+ $4.51 $4.51

Estimated market price range - modelled values for guidance only, not live distributor offers.

691701550007B Features

  • 7 positions with 5.08mm pitch spacing.
  • Right angle shrouded header design.
  • Rated for 300V and 10A.
  • Through-hole solder termination.
  • Tin-plated contacts for reliable connection.

691701550007B Applications

  • Ideal for PCB-to-wire connections in control systems.
  • Used in industrial automation equipment.
  • Suitable for power distribution panels.

691701550007B FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

7 positions.

What is the pitch of this terminal block header?

5.08mm (0.200").

What is the current rating of this header?

10A.

What is the voltage rating?

300V.

What is the mounting type?

Through-hole.

What is the header orientation?

90°, right angle.

What is the operating temperature range?

-40°C to 105°C.
