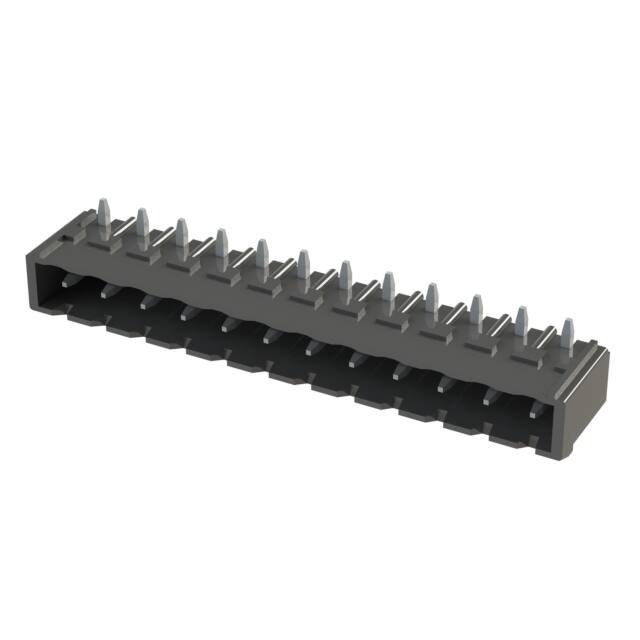

691701540012B 12-position right angle shrouded header from the WR-TBL 7015 series. 5.08mm pitch, through hole solder termination, rated 15A/300V AC (cULus).
Mfr Part #:

691701540012B

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
12-position right angle shrouded header from the WR-TBL 7015 series. 5.08mm pitch, through hole solder termination, rated 15A/300V AC (cULus).
✓ Total Stock: 74 pcs
$ Price Range: $5.57

691701540012B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
74 pcs
On Request
74 pcs On Request 10 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691701540012B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Contact Resistance
Current
Header Orientation
Industrial Grade
Insulator Flammability Rating
Insulator Material
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
View Similar Products (0)

691701540012B Description

Short technical summary and product information.

The Würth Elektronik 691701540012B is a 12-position, single-level, right angle shrouded header from the WR-TBL Series 7015. It features a 5.08mm pitch and through hole mounting with solder termination. The header is designed for PCB applications requiring secure wire-to-board connections.



Electrical ratings include 15A current (cULus) and 300V AC working voltage (cULus), with VDE ratings of 18A and 400V AC. The insulator is made of LCP with a UL94 V-0 flammability rating, and the pins are brass with tin over nickel plating. Operating temperature range is -40°C to +130°C.



This header is suitable for use in industrial control, power distribution, and signal transmission systems. The shrouded design provides protection and polarization for mating connectors.

691701540012B Quick Information

Product Type: Header, Male Pins, Shrouded (4 Side)
Series: 7015
Canonical Name: WR-TBL Series 7015 12 Position 5.08mm Pitch Shrouded PCB Header, Right Angle, Through Hole
Subcategory: Shrouded Header

691701540012B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

691701540012B Estimated Pricing

Qty Low High
250+ $5.57 $5.57

Estimated market price range - modelled values for guidance only, not live distributor offers.

691701540012B Features

  • 12 positions with 5.08mm pitch.
  • Through hole right angle mounting.
  • Rated 15A cULus / 18A VDE.
  • UL94 V-0 LCP insulator.
  • Tin over nickel plated brass pins.

691701540012B Applications

  • Ideal for PCB to wire connections in control systems.
  • Used in power distribution and signal transmission.
  • Suitable for industrial automation equipment.

691701540012B FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 691701540012B have?

12 positions.

What is the pitch of the 691701540012B?

5.08mm (0.200").

What is the current rating of the 691701540012B?

15A cULus, 18A VDE.

What is the voltage rating of the 691701540012B?

300V AC cULus, 400V AC VDE.

What is the mounting type of the 691701540012B?

Through hole, right angle.

What is the operating temperature range of the 691701540012B?

-40°C to +130°C (from datasheet).

What is the flammability rating of the insulator?

UL94 V-0.
