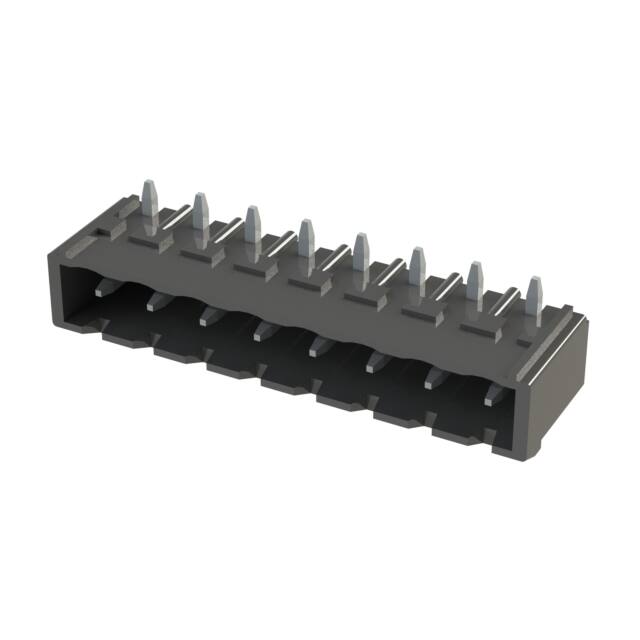

691701540008B 8-position, 1-level, 5.08mm pitch right-angle shrouded PCB header from Würth Elektronik's WR-TBL Series 7015B. Rated for 15A (cULus) and 300V with through-hole solder termination.
Mfr Part #:

691701540008B

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
8-position, 1-level, 5.08mm pitch right-angle shrouded PCB header from Würth Elektronik's WR-TBL Series 7015B. Rated for 15A (cULus) and 300V with through-hole solder termination.
✓ Total Stock: 3,000 pcs
$ Price Range: $3.76

691701540008B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 10 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691701540008B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Color
Contact Mating Finish
Contact Resistance
Current
Header Orientation
Industrial Grade
Insulator Flammability Rating
Insulator Material
Lead Spacing
Lead Style
Length
Medical Grade
Military Grade
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Operating Temperature Range
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

691701540008B Description

Short technical summary and product information.

The Würth Elektronik 691701540008B is an 8-position, 1-level shrouded PCB header from the WR-TBL Series 7015B. It features a 5.08mm pitch and right-angle orientation, designed for through-hole mounting with solder termination. The header is rated for 15A (cULus) and 300V AC (cULus), with a higher VDE rating of 18A and 400V AC. Operating temperature ranges from -40°C to +130°C, and contact resistance is 20 mΩ maximum.



The insulator is made of LCP with UL94 V-0 flammability rating, and the pins are brass with tin over nickel plating. The header is shrouded on four sides for secure mating with plug connectors. Compliant with RoHS and REACH, it is suitable for industrial applications such as control and automation equipment. The manufacturer page notes that other polarities, plastic housing colors, and printings are available upon request.

691701540008B Quick Information

Product Type: Terminal Block Header
Series: 7015B
Canonical Name: Header, Male Pins, Shrouded (4 Side), 8 Positions, 1 Level, 5.08mm Pitch, Through Hole, Right Angle, 15A, 300V, WR-TBL Series 7015B
Subcategory: Shrouded Header

691701540008B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Compliant

691701540008B Estimated Pricing

Qty Low High
250+ $3.76 $3.76

Estimated market price range - modelled values for guidance only, not live distributor offers.

691701540008B Features

  • 8 positions with 5.08mm pitch spacing.
  • Rated for 15A cULus and 300V AC.
  • Right-angle shrouded design for secure connections.
  • Through-hole mounting with solder termination.
  • Operating temperature range -40°C to +130°C.

691701540008B Applications

  • Industrial control and automation equipment.
  • Power distribution and signal connections.
  • Board-to-wire interface in terminal blocks.
  • Suitable for harsh environments with UL94 V-0 rating.

691701540008B FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 691701540008B have?

It has 8 positions arranged in 1 level (8 positions per level).

What is the pitch of this header?

The pitch is 5.08 mm (0.200 inches).

What is the current rating of the 691701540008B?

The rated current is 15 A per contact under cULus and 18 A under VDE. A lower value of 10 A is also listed in some databases but the datasheet provides the verified cULus and VDE ratings.

What is the voltage rating?

The working voltage is 300 V AC (cULus) and 400 V AC (VDE). The withstanding voltage is 1600 V AC (cULus) and 2200 V AC (VDE).

What is the mounting type of this header?

It is a through-hole mounted, right-angle header with solder termination.

What is the operating temperature range?

The operating temperature range is -40°C up to +130°C as per the datasheet.

What is the contact resistance?

The maximum contact resistance is 20 mΩ.
