| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
94 pcs
|
94 pcs | On Request | 15 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Contact Resistance | |
| Current | |
| Header Orientation | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage |

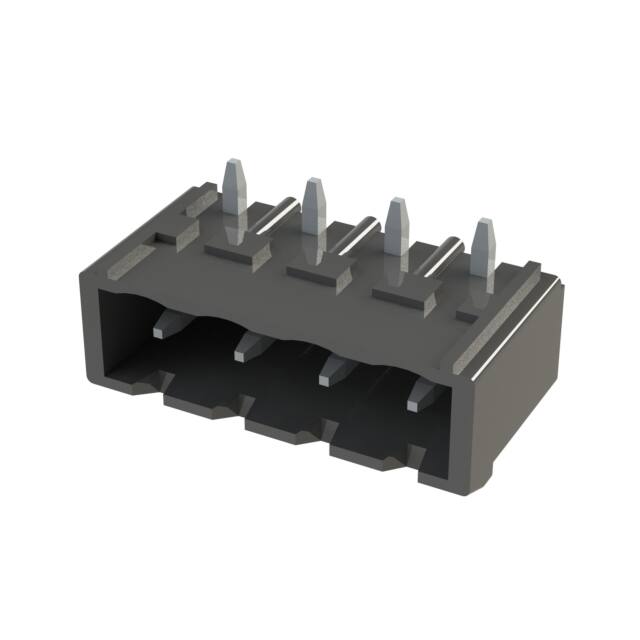

This is a 4-position, 5.08mm pitch, right angle (90°) through hole header from the WR-TBL Series 7015 by Würth Elektronik. It features male pins with tin over nickel plating, shrouded on all four sides, and a black LCP insulator rated UL94 V-0. Key electrical ratings include a general current rating of 10A (with higher ratings per cULus and VDE standards), and a voltage rating of 300V (cULus 300V, VDE 400V). The operating temperature range is -40°C to 105°C (datasheet variant indicates up to 130°C). The header is designed for solder termination and is RoHS and REACH compliant. Applications include industrial control, power distribution, and general-purpose wire-to-board connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.12 | $3.12 |
| 10+ | $2.71 | $2.71 |
| 50+ | $2.35 | $2.35 |
| 100+ | $2.05 | $2.05 |
| 250+ | $1.94 | $1.94 |
| 500+ | $1.77 | $1.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
5.08 mm.
General current rating is 10A, with cULus rating of 15A and VDE rating of 18A.
General voltage rating is 300V, with cULus rating of 300V and VDE rating of 400V.
Through hole.
-40°C to 105°C (datasheet variant indicates up to 130°C).
UL94 V-0.
