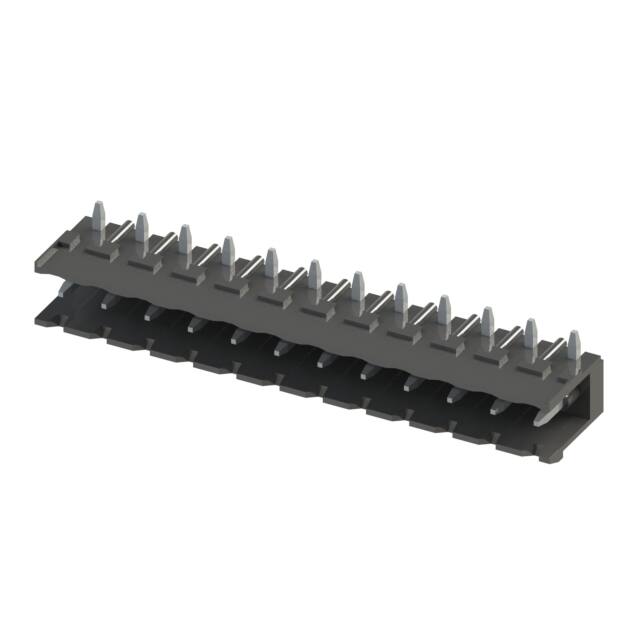

The Würth Elektronik 691701530012B is a 12-position, single-level shrouded header from the 7015B series. It features a 5.08mm pitch and a right angle orientation, designed for through hole soldering. The header uses male pins with a tin contact mating finish and brass (CuZn) contact pin material. The insulator is made of black LCP with a UL94-V0 flammability rating.
Electrical ratings include a current rating of 10A and a working voltage of 300V AC. The dielectric withstanding voltage is 4 kVac for 1 minute, and the maximum contact resistance is 20 mΩ. The operating temperature range is -40°C to 105°C.
The component is packaged in tape and reel with a standard quantity of 1000 pieces. It is RoHS compliant and lead free. The solder temperature specification follows the reflow process per JEDEC J-020D-STD.
| Qty | Low | High |
|---|---|---|
| 250+ | $5.57 | $5.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 5.08mm.
It has 12 positions.
The current rating is 10A.
The voltage rating is 300V AC.
Through hole.
Yes, it is RoHS compliant and lead free.
-40°C to 105°C.
