691701530010B Würth Elektronik WR-TBL Series 7015B PCB header with 10 positions, 5.08mm pitch, right-angle orientation, and through-hole mounting. Shrouded design with tin-plated brass contacts.
Mfr Part #:

691701530010B

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik WR-TBL Series 7015B PCB header with 10 positions, 5.08mm pitch, right-angle orientation, and through-hole mounting. Shrouded design with tin-plated brass contacts.
✓ Total Stock: 23 pcs
$ Price Range: $4.92

691701530010B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
23 pcs
On Request
23 pcs On Request 12 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691701530010B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Contact Mating Finish
Contact Resistance
Current
Current Rating
Dielectric Withstanding Voltage
Header Orientation
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Tape & Reel
Termination Style
Type
Voltage
Working Voltage
View Similar Products (0)

691701530010B Description

Short technical summary and product information.

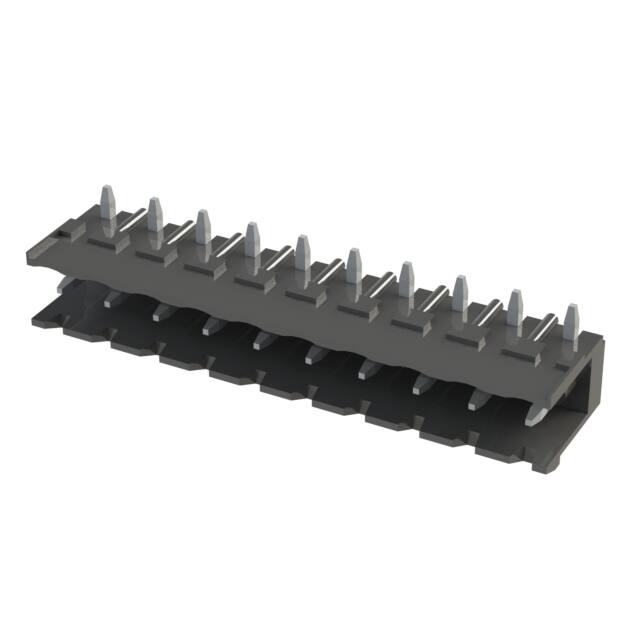

The Würth Elektronik 691701530010B is a 10-position terminal block header from the WR-TBL Series 7015B. It features a 5.08mm pitch and a right-angle (90°) orientation for through-hole mounting. The header is shrouded on two sides, providing mechanical protection and polarization for mating connectors.



Electrical ratings include a current rating of 15A (cULus) and a working voltage of 300V AC. The insulator is molded from LCP (Liquid Crystal Polymer) with a UL94-V0 flammability rating, and the contacts are brass with tin plating. The operating temperature range is -40°C to 105°C.



This component is suitable for industrial applications requiring reliable wire-to-board connections. It is packaged in Tape & Reel for automated assembly and is RoHS compliant and lead-free.

691701530010B Quick Information

Product Type: Terminal Block Header
Series: 7015B
Canonical Name: WR-TBL Series 7015B PCB Header, 10 Positions, 5.08mm Pitch, Through Hole, Right Angle, Shrouded
Subcategory: Terminal Block Headers

691701530010B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

691701530010B Estimated Pricing

Qty Low High
250+ $4.92 $4.92

Estimated market price range - modelled values for guidance only, not live distributor offers.

691701530010B Features

  • 10 positions with 5.08mm pitch spacing.
  • Right-angle through-hole mounting style.
  • Shrouded header with two-side protection.
  • Rated for 15A current and 300V AC.
  • LCP insulator with UL94-V0 flammability rating.

691701530010B Applications

  • Industrial control and automation systems.
  • Power supply and distribution boards.
  • Building automation and HVAC equipment.
  • Test and measurement instrumentation.

691701530010B FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 691701530010B have?

This header has 10 positions.

What is the pitch of this terminal block header?

The pitch is 5.08mm (0.200 inches).

What is the current rating of the 691701530010B?

The cULus rated current is 15A; the datasheet specifies 10A.

What is the voltage rating for this header?

The working voltage is 300V AC.

What mounting type does this part use?

It uses through-hole mounting with solder termination.
