| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
44 pcs
|
44 pcs | On Request | 15 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Dielectric Withstanding Voltage | |
| Halogen Free | |
| Header Orientation | |
| Industrial Grade | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Storage Temperature | |
| Termination Style | |
| Type | |
| Voltage |

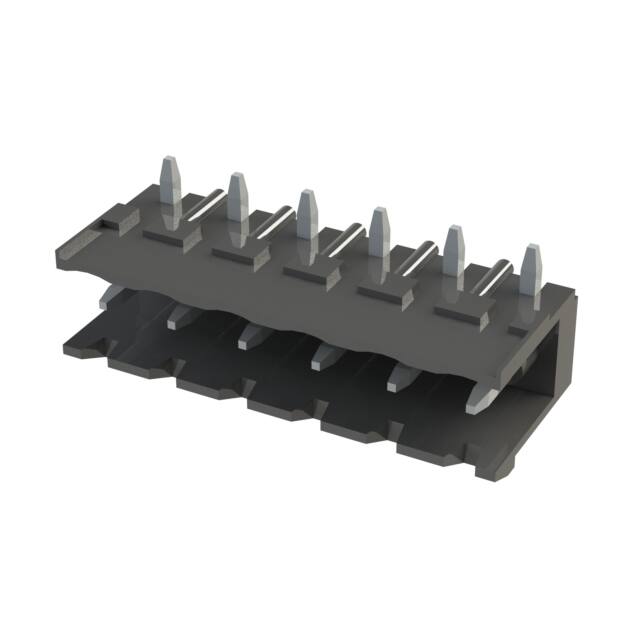

The Würth Elektronik 691701530006B is a 5.08mm pitch terminal block header with 6 positions in a single level. This shrouded header features male pins with a right angle orientation for through-hole soldering. The insulator is made from LCP with a UL94-V0 flammability rating and black color. Contact pins are brass with tin plated solder tails and tin mating finish. Electrical ratings include 10A current and 300V voltage, with a maximum contact resistance of 20 mΩ and dielectric withstanding voltage of 4 kVac/min. Operating temperature range is -40°C to 105°C. The component is RoHS compliant and packaged in tape and reel with 1500 pieces per reel. This header is suitable for power and signal connections in terminal block systems.
| Qty | Low | High |
|---|---|---|
| 250+ | $3.00 | $3.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 5.08mm.
It has 6 positions in a single level.
The continuous current rating is 10A.
The working voltage is 300V.
Through hole with right angle orientation.
-40°C to 105°C.
UL94-V0.
