| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
37 pcs
|
37 pcs | On Request | 10 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Contact Material | |
| Contact Mating Finish | |
| Contact Resistance | |
| Current | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Features | |
| Flammability Rating | |
| Flange Nut Material | |
| Header Orientation | |
| Industrial Grade | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Maximum Operating Temperature | |
| Medical Grade | |
| Military Grade | |
| Minimum Operating Temperature | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Positions Per Level | |
| Solder Process | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating |

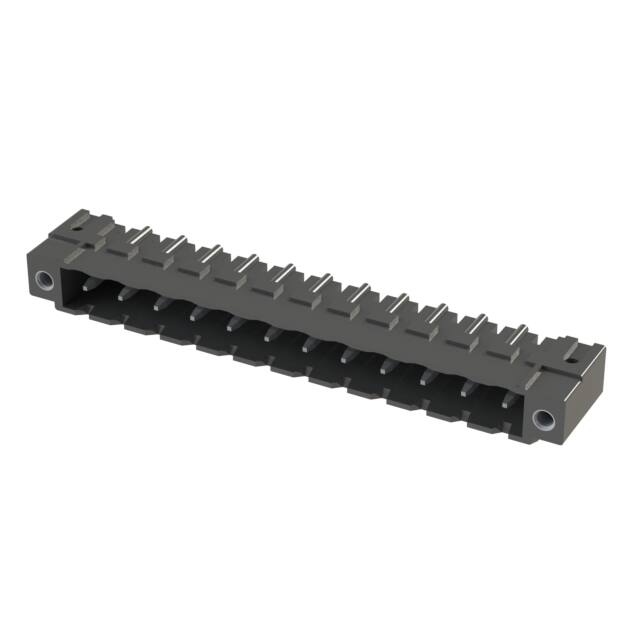

The Würth Elektronik 691701520012B is a 12-position terminal block header from the 7015B series. It features a 5.08mm pitch, vertical orientation, and a shrouded design with four sides for enhanced protection. The header uses through hole mounting with solder termination, making it suitable for robust PCB connections.
Electrical ratings include a current rating of 10A and a voltage rating of 300V. The contact resistance is 20mΩ maximum, and the dielectric withstanding voltage is 4kVac for one minute. The insulator is made of LCP with a UL94-V0 flammability rating, and the contacts are brass with tin plating.
The header includes a mating flange for secure connection and is packaged in tape and reel with cap. It is RoHS compliant and lead-free. Operating temperature range is -40°C to 105°C.
| Qty | Low | High |
|---|---|---|
| 150+ | $6.22 | $6.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions.
5.08mm.
10A.
300V.
Through hole.
-40°C to 105°C.
Yes, RoHS3 compliant.
