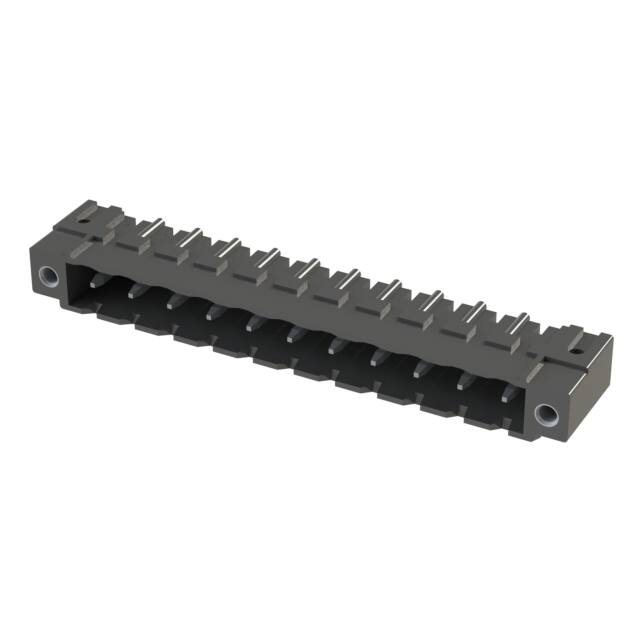

The 691701520011B is a PCB header from the Würth Elektronik WR-TBL series 7015B. It is an 11-position, single-level, shrouded header with male pins designed for through-hole mounting in a vertical orientation. The component uses a 5.08mm pitch and features a tin-plated contact mating finish.
This header is rated for 300 V working voltage and 10 A current, with a dielectric withstanding voltage of 4 kVac/min and a maximum contact resistance of 20 mΩ. The insulator is made of liquid crystal polymer (LCP) with a UL94-V0 flammability rating, and the contact pins are brass with tin-plated solder tails. The operating temperature range is -40°C to 105°C.
The part includes a mating flange for additional mechanical retention. It is packaged in tape and reel with a cap. The product is RoHS compliant and lead free.
| Qty | Low | High |
|---|---|---|
| 150+ | $5.75 | $5.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 691701520011B has 11 positions in a single level.
The pitch is 5.08 mm.
The current rating is 10 A and the voltage rating is 300 V.
This header uses through-hole mounting.
Yes, the 691701520011B is RoHS compliant and lead free.
The operating temperature range is -40°C to 105°C.
The insulator material is LCP with a UL94-V0 flammability rating.
