| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 6 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Contact Mating Finish | |
| Contact Resistance | |
| Current | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Features | |
| Header Orientation | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating |

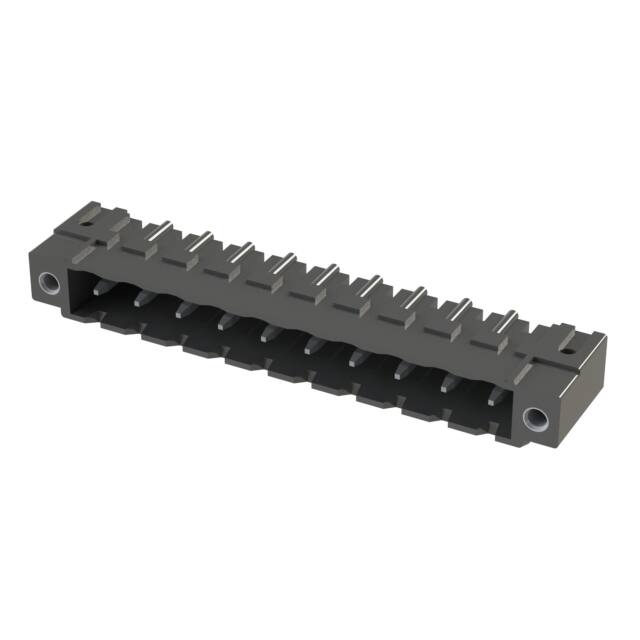

The Würth Elektronik 691701520010B is a 10-position vertical shrouded header from the 7015B series, designed for PCB-to-wire terminal block connections. It features a 5.08mm pitch and through hole mounting, with solder termination for reliable assembly. The header is rated for 10A current and 300V voltage, making it suitable for industrial power distribution and signal wiring. The insulator is molded from LCP with UL94 V-0 flammability rating, and contacts are brass with tin plating. A mating flange ensures secure connection with matching plug housings. The part is RoHS compliant and lead-free, packaged in tape and reel with cap. Operating temperature range is -40°C to 105°C, with a maximum contact resistance of 20 mΩ and dielectric withstand voltage of 4 kVac/min.
| Qty | Low | High |
|---|---|---|
| 150+ | $5.52 | $5.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This header has 10 positions.
The pitch is 5.08mm (0.200 inches).
Current rating is 10A, voltage rating is 300V.
This header is through hole mounted.
Yes, it is RoHS compliant and lead-free.
Operating temperature range is -40°C to 105°C.
Insulator is LCP with UL94 V-0 rating; contacts are brass with tin plating.
