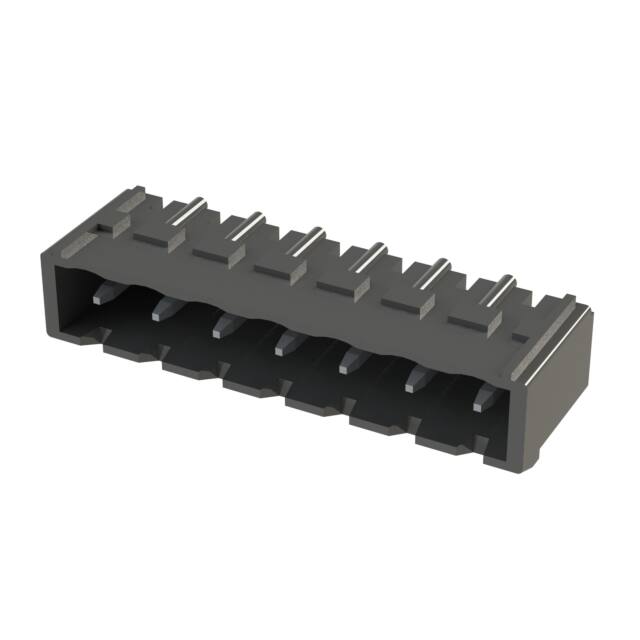

691701510007B Würth Elektronik 691701510007B is a 7-position, 5.08mm pitch vertical shrouded header with through hole mounting. Rated for 10A and 300V.
Mfr Part #:

691701510007B

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik 691701510007B is a 7-position, 5.08mm pitch vertical shrouded header with through hole mounting. Rated for 10A and 300V.
✓ Total Stock: 90 pcs
$ Price Range: $3.37

691701510007B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
90 pcs
On Request
90 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691701510007B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Tape & Reel
Termination Style
Type
Voltage
View Similar Products (0)

691701510007B Description

Short technical summary and product information.

The Würth Elektronik 691701510007B is a 7-position, single-level terminal block header with male pins and a shrouded (4 side) design. It features a vertical orientation and a 5.08mm pitch, making it suitable for compact PCB layouts.



This header is rated for 10A current and 300V voltage, with an operating temperature range of -40°C to 105°C. Contacts are finished with tin for reliable solder connections.



The component mounts via through hole and terminates with solder, ensuring a robust mechanical and electrical bond to the PCB. The black housing provides clear visual identification.



Designed for use with compatible mating plugs, this header is ideal for industrial control, power distribution, and I/O module applications where reliable wire-to-board connections are required.

691701510007B Quick Information

Product Type: Header, Male Pins, Shrouded (4 Side)
Canonical Name: Header, Male Pins, Shrouded (4 Side), 7 Positions, 5.08mm Pitch, Vertical, Through Hole
Subcategory: Header, Male Pins, Shrouded

691701510007B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

691701510007B Estimated Pricing

Qty Low High
150+ $3.37 $3.37

Estimated market price range - modelled values for guidance only, not live distributor offers.

691701510007B Features

  • 7 positions with 5.08mm pitch.
  • Vertical orientation for through-hole mounting.
  • Shrouded header with 4-side protection.
  • Rated for 10A and 300V.
  • Operating temperature from -40°C to 105°C.

691701510007B Applications

  • Connects to compatible terminal block plugs.
  • Ideal for industrial control and automation.
  • Used in power distribution and I/O modules.
  • Suitable for wire-to-board applications.

691701510007B FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 691701510007B have?

7 positions.

What is the pitch of this header?

5.08mm.

What is the current rating?

10 A.

What is the voltage rating?

300 V.

What is the mounting type?

Through hole.

What is the operating temperature range?

-40°C to 105°C.

What is the contact mating finish?

Tin.
