| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27 pcs
|
27 pcs | On Request | 10 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Contact Pin Material | |
| Contact Resistance | |
| Current | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Flammability Rating | |
| Header Orientation | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Positions Per Level | |
| Solder Temperature | |
| Standard Package Quantity | |
| Surface of Solder Tail Plating | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating |

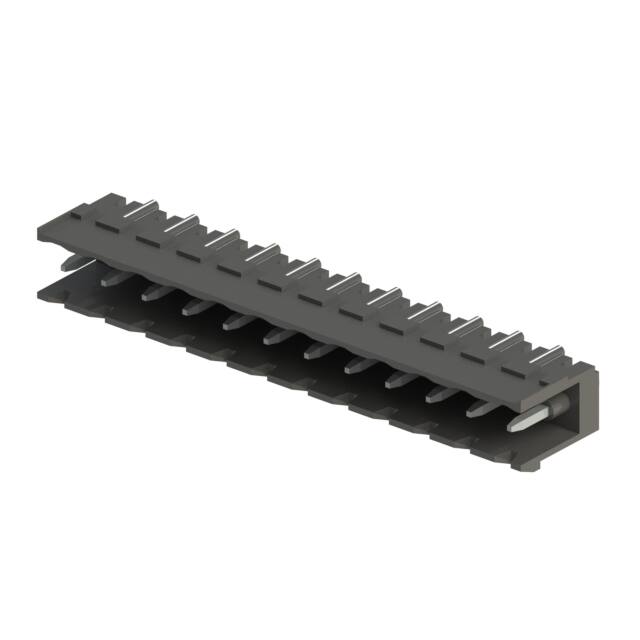

The Würth Elektronik 691701500012B is a 12-position vertical shrouded header from the 7015B series, designed for reliable PCB connections in industrial and commercial applications. It features a 5.08mm pitch, through hole mounting, and a black LCP insulator with UL94-V0 flammability rating.
Key electrical characteristics include a current rating of 10A, working voltage of 300V, dielectric withstanding voltage of 4kV, and contact resistance of 20mΩ maximum. The operating temperature range spans -40°C to 105°C, making it suitable for a wide range of environments.
The header uses brass contact pins with tin plated solder tails, ensuring reliable solder joints. Packaging is tape and reel with cap, with a standard quantity of 600 pieces per reel. The product is RoHS compliant and lead-free.
| Qty | Low | High |
|---|---|---|
| 150+ | $5.57 | $5.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions.
5.08mm (0.200 inches).
10 A.
300 V.
Through hole.
-40°C to 105°C.
4 kV.
