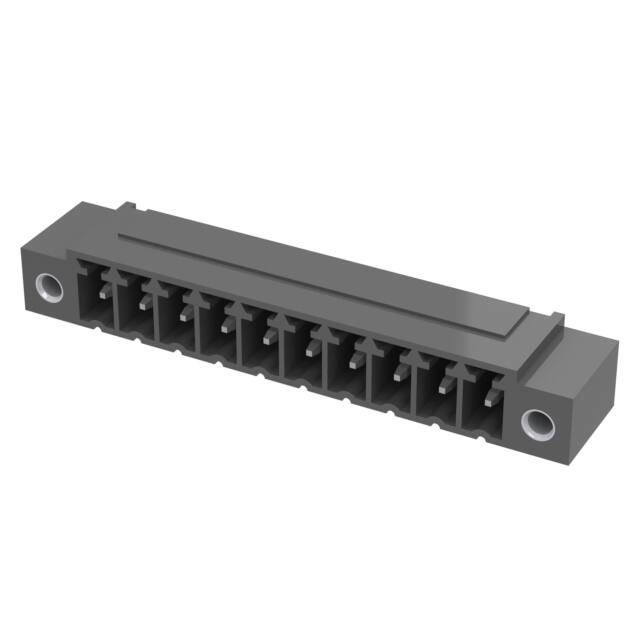

691701350010B Würth Elektronik 691701350010B is a 10 position, 3.81mm pitch, right angle shrouded header with through-hole solder termination. It features a mating flange and is rated for 300V and 10A.
Mfr Part #:

691701350010B

Available from 3 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik 691701350010B is a 10 position, 3.81mm pitch, right angle shrouded header with through-hole solder termination. It features a mating flange and is rated for 300V and 10A.
✓ Total Stock: 887 pcs
$ Price Range: $5.02

691701350010B Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
447 pcs
On Request
447 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
430 pcs
On Request
430 pcs On Request 10 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691701350010B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Contact Resistance
Current
Current Rating
Features
Header Orientation
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Tape & Reel
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

691701350010B Description

Short technical summary and product information.

The Würth Elektronik 691701350010B is a 10-position, 3.81mm pitch, right angle shrouded header (male pins) from the WR-TBL Series 7013. It is designed for through-hole mounting and solder termination. The header features a black LCP insulator with UL94 V-0 flammability rating and brass pins with tin plating. It includes a mating flange for secure connection. Electrical ratings include 300V working voltage (cULus) and 10A current rating (cULus), with VDE ratings of 250V and 8A. The operating temperature range is -40°C to 105°C. The part is RoHS and REACH compliant.

691701350010B Quick Information

Product Type: Terminal Block Header
Series: 7013
Canonical Name: Würth Elektronik WR-TBL Series 7013 3.81mm 10 Position Right Angle Shrouded Header, Through Hole
Subcategory: PCB Headers

691701350010B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant

691701350010B Estimated Pricing

Qty Low High
450+ $5.02 $5.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

691701350010B Features

  • 10 positions with 3.81mm pitch.
  • Right angle orientation for horizontal cable entry.
  • Shrouded design with mating flange.
  • Through-hole solder termination.
  • Rated for 300V and 10A operation.

691701350010B Applications

  • Ideal for industrial control panel wiring.
  • Suitable for power supply and signal connections.
  • Used in automation and instrumentation systems.
  • Applied in building automation and HVAC.

691701350010B FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

10 positions.

What is the pitch?

3.81mm.

What is the current rating?

10A (cULus) and 8A (VDE).

What is the voltage rating?

300V (cULus) and 250V (VDE).

What is the mounting type?

Through hole.

What is the operating temperature range?

-40°C to 105°C.

What approvals does it have?

cULus (E315414) and VDE (40058871).
