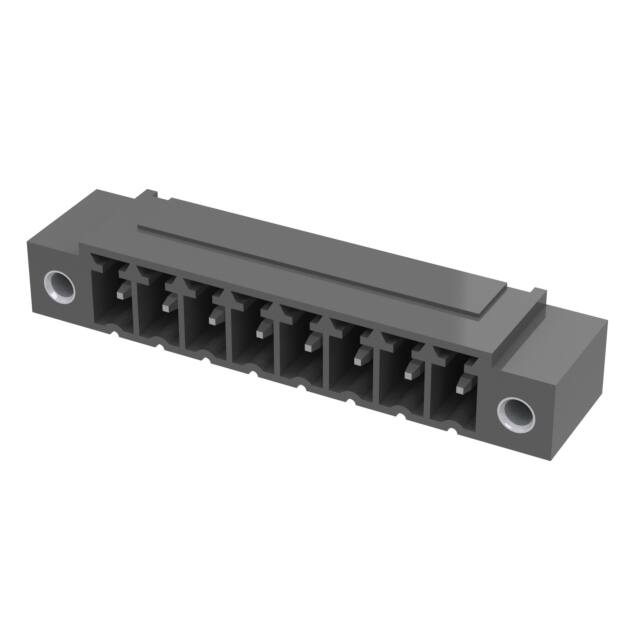

691701350008B Würth Elektronik WR-TBL Series 7013 PCB header with 8 positions, 3.81mm pitch, right angle orientation, through hole mounting, and shrouded design with mating flange.
Mfr Part #:

691701350008B

Available from 3 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik WR-TBL Series 7013 PCB header with 8 positions, 3.81mm pitch, right angle orientation, through hole mounting, and shrouded design with mating flange.
✓ Total Stock: 1,437 pcs
$ Price Range: $4.52

691701350008B Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
1,350 pcs
On Request
1350 pcs On Request 6 On Request On Request On Request On Request On Request
Chanetech ✓
Non-Authorised Inventory information
77 pcs
On Request
77 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691701350008B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Contact Resistance
Current
Features
Header Orientation
Insulator Flammability Rating
Insulator Material
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Rated Current
Tape & Reel
Termination Style
Type
Voltage
Withstanding Voltage
Working Voltage
View Similar Products (0)

691701350008B Description

Short technical summary and product information.

The Würth Elektronik 691701350008B is a WR-TBL Series 7013 PCB header designed for reliable wire-to-board connections in terminal block applications. This 8-position header features a 3.81mm pitch and a right-angle orientation, making it suitable for space-constrained layouts where horizontal cable entry is required.



The header is shrouded on four sides and includes a mating flange for secure locking with compatible plug connectors. It is rated for 10A current (cULus) and 300V working voltage (cULus), with a VDE rating of 8A/250V. The insulator is made of black LCP with a UL94 V-0 flammability rating, and the brass pins are plated with tin over nickel for reliable solderability and corrosion resistance.



Through hole termination ensures robust mechanical attachment to the PCB. The operating temperature range of -40°C to 105°C supports use in industrial and commercial environments. This header is RoHS and REACH compliant, and carries cULus (E315414) and VDE (40058871) approvals.

691701350008B Quick Information

Product Type: Terminal Block Header
Series: 7013
Canonical Name: WR-TBL Series 7013 PCB Header, 3.81mm Pitch, 8 Positions, Right Angle, Through Hole, Shrouded (4 Side), with Mating Flange
Subcategory: PCB Header

691701350008B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant

691701350008B Estimated Pricing

Qty Low High
450+ $4.52 $4.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

691701350008B Features

  • 8 positions with 3.81mm pitch spacing.
  • Right angle orientation for horizontal cable entry.
  • Shrouded header with integrated mating flange.
  • Rated 10A at 300V (cULus) and 8A at 250V (VDE).
  • Through hole mounting with tin-plated brass pins.

691701350008B Applications

  • Industrial control and automation systems.
  • Power supply and distribution units.
  • Building automation and HVAC equipment.
  • Lighting and LED driver connections.
  • General purpose wire-to-board interconnect.

691701350008B FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 691701350008B header have?

It has 8 positions arranged in a single level.

What is the pitch of this terminal block header?

The pitch is 3.81mm (0.150 inches).

What are the current and voltage ratings?

cULus rating: 10A at 300V. VDE rating: 8A at 250V.

What mounting type does this header use?

It uses through hole mounting with solder termination.

What is the operating temperature range?

The operating temperature range is -40°C to 105°C.

Is the 691701350008B RoHS compliant?

Yes, it is RoHS compliant per 2011/65/EU & 2015/863.

What safety approvals does this header carry?

It carries cULus (E315414) and VDE (40058871) approvals.
