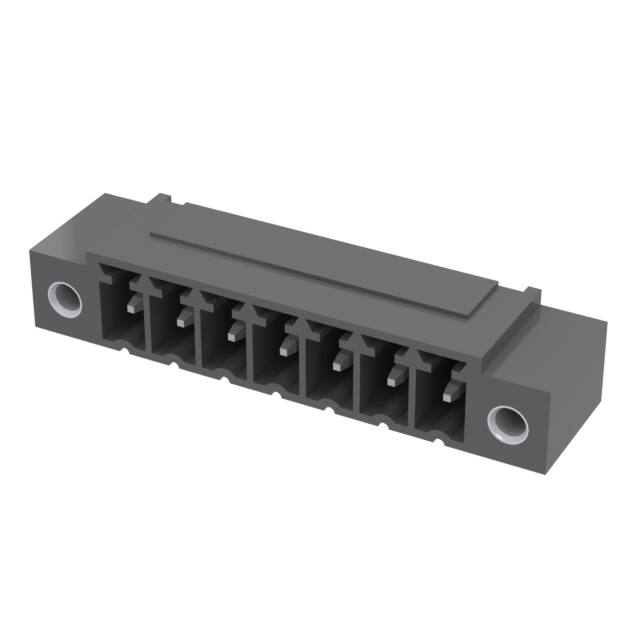

691701350007B Würth Elektronik WR-TBL Series 7013 PCB header with 7 positions, 3.81mm pitch, right angle orientation, and through hole mounting. Rated for 10 A and 300 V with tin-plated brass contacts.
Mfr Part #:

691701350007B

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik WR-TBL Series 7013 PCB header with 7 positions, 3.81mm pitch, right angle orientation, and through hole mounting. Rated for 10 A and 300 V with tin-plated brass contacts.
✓ Total Stock: 900 pcs
$ Price Range: $4.10

691701350007B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
900 pcs
On Request
900 pcs On Request 10 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691701350007B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Contact Resistance
Current
Features
Header Orientation
Insulator Flammability Rating
Insulator Material
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Rated Current
Termination Style
Type
Voltage
Withstanding Voltage
Working Voltage
View Similar Products (0)

691701350007B Description

Short technical summary and product information.

The Würth Elektronik 691701350007B is a WR-TBL Series 7013 PCB header designed for 3.81mm pitch terminal block applications. It features 7 positions arranged in a single level with right angle orientation for horizontal cable entry, enabling space-saving connections on the PCB edge.



This shrouded header includes a mating flange for secure locking with the corresponding plug. The insulator is black LCP material with a UL94 V-0 flammability rating, ensuring reliable performance across a wide temperature range of -40°C to 105°C. Contacts are brass with tin over nickel plating, supporting a rated current of 10 A (cULus) or 8 A (VDE) and a working voltage of 300 V (cULus) or 250 V (VDE).



The component is through hole mounted with solder termination, offering robust mechanical retention and reliable electrical connections. It is RoHS3 compliant, REACH conform, and carries cULus and VDE safety approvals, making it suitable for industrial control, power supplies, and automation equipment.

691701350007B Quick Information

Product Type: Terminal Block Header
Series: 7013
Canonical Name: WR-TBL Series 7013 PCB Header, 3.81mm Pitch, 7 Positions, Right Angle, Through Hole
Subcategory: PCB Header

691701350007B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

691701350007B Estimated Pricing

Qty Low High
450+ $4.10 $4.10

Estimated market price range - modelled values for guidance only, not live distributor offers.

691701350007B Features

  • 7 positions, single level, 3.81mm pitch.
  • Right angle orientation for horizontal cable entry.
  • Through hole mounting with solder termination.
  • Rated 10 A, 300 V with tin-plated contacts.
  • Shrouded header with mating flange for secure connection.

691701350007B Applications

  • Used in industrial control and automation systems.
  • Connects power supplies to terminal blocks.
  • Ideal for PLC and I/O module wiring.
  • Suitable for building automation and HVAC equipment.

691701350007B FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 691701350007B have?

This header has 7 positions.

What is the pitch of the 691701350007B?

The pitch is 3.81 mm.

What is the current rating of the 691701350007B?

The rated current is 10 A for cULus and 8 A for VDE.

What is the voltage rating of the 691701350007B?

The working voltage is 300 V for cULus and 250 V for VDE.

What mounting type does the 691701350007B use?

It uses through hole mounting.

What is the operating temperature range of the 691701350007B?

The operating temperature range is -40°C to 105°C.
