| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
145 pcs
|
145 pcs | On Request | 10 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Header Orientation | |
| Industrial Grade | |
| Insulator Flammability Rating | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage |

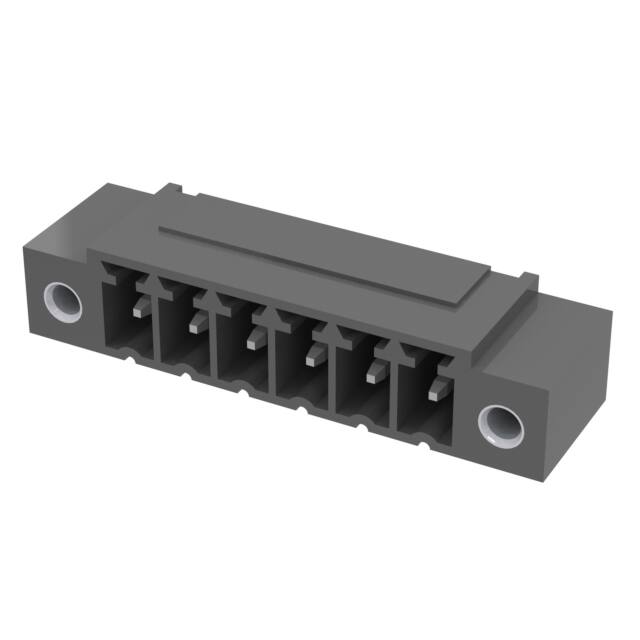

The Würth Elektronik 691701350006B is a 6-position terminal block header from the WR-TBL Series 7013. It features a 3.81mm pitch, right angle orientation, and through hole mounting for secure PCB attachment. The header is shrouded on four sides and includes a mating flange for reliable connection with corresponding plugs.
Electrical ratings include 10A current and 300V working voltage under cULus standards, or 8A/250V under VDE. Withstanding voltage is 1600V (cULus) and 1400V (VDE), with contact resistance of 20 mΩ maximum. The operating temperature range is -40°C to 105°C.
Constructed with a black LCP insulator rated UL94 V-0, and brass pins with tin over nickel plating. The header is RoHS3 compliant and REACH conform. Suitable for industrial control, power distribution, and automation applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.15 | $6.15 |
| 10+ | $5.34 | $5.34 |
| 50+ | $4.65 | $4.65 |
| 100+ | $4.04 | $4.04 |
| 450+ | $3.49 | $3.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
3.81mm (0.150").
10A (cULus) or 8A (VDE).
300V (cULus) or 250V (VDE).
Through hole, right angle.
-40°C to 105°C.
Tin over nickel.
