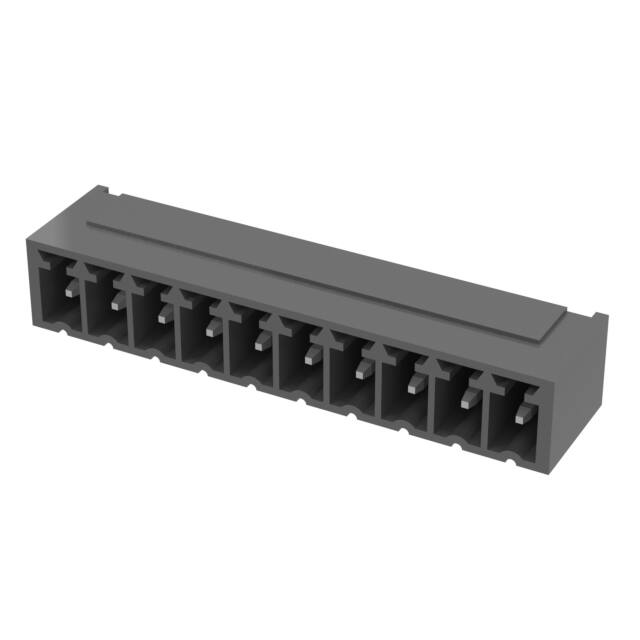

Würth Elektronik 691701340010B is a 10-position, 1-level, 3.81mm pitch right-angle shrouded header with through hole solder termination. It features tin-plated brass pins, LCP insulator, and is rated for 10A/300V (cULus).

✓ Total Stock: 435 pcs

$ Price Range: $4.47

691701340010B Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Fe Components ✓ Non-Authorised Inventory information	435 pcs On Request	435 pcs	On Request	10	On Request	On Request	On Request	On Request	On Request

691701340010B Description

Short technical summary and product information.

The Würth Elektronik 691701340010B is a 10-position, single-level terminal block header with a 3.81mm pitch. This shrouded male pin header features a right-angle orientation and through hole mounting, making it suitable for horizontal cable entry in PCB designs. The header is part of the WR-TBL Series 7013. Electrical ratings include 10A current (cULus) / 8A (VDE) and 300V working voltage (cULus) / 250V (VDE). The contact resistance is 20mΩ maximum, and withstanding voltage is 1600V (cULus) / 1400V (VDE). Mechanically, the header uses tin-plated brass pins and a black LCP insulator with UL94 V-0 flammability rating. The insulator provides good thermal stability. The operating temperature range is -40°C to +105°C (datasheet suggests up to +130°C — verify). The header is compliant with RoHS and REACH directives, and has MSL 1 (unlimited) rating. This component is designed for use in general electronic equipment where reliable, space-saving connections are required.

691701340010B Quick Information

Product Type: Terminal Block Header

Series: 7013

Canonical Name: Header, Male Pins, Shrouded (4 Side), 10 Positions, 3.81mm Pitch, Right Angle, Through Hole, Tin

Subcategory: Shrouded Header

691701340010B Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: Compliant

691701340010B Estimated Pricing

Qty	Low	High
450+	$4.47	$4.47

Estimated market price range - modelled values for guidance only, not live distributor offers.

691701340010B Features

10-position shrouded header with 3.81mm pitch.
Right-angle orientation for horizontal cable entry.
Through hole mounting with solder termination.
Rated 10A current and 300V voltage (cULus).
LCP insulator with UL94 V-0 flammability rating.

691701340010B Applications

Used in industrial control systems.
Suitable for power supply connections.
Ideal for PLC and I/O modules.
Used in consumer electronics wiring.

691701340010B FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the 691701340010B have?

10 positions in a single level.

What is the pitch of this header?

3.81 mm (0.150 inches).

What is the current rating?

10A under cULus and 8A under VDE standards.

What is the voltage rating?

300V under cULus and 250V under VDE standards.

What is the mounting type?

Through hole with solder termination.

What is the operating temperature range?

-40°C to +105°C per existing data; datasheet suggests -40°C to +130°C.

What is the flammability rating?

UL94 V-0.

Category	Headers, Plugs and Sockets
Manufacturer Name	Würth Elektronik
Color	Black
Contact Mating Finish	Tin
Contact Resistance	20 mΩ max.
Current	10 A
Header Orientation	90°, Right Angle
Insulator Color	Black
Insulator Flammability Rating	UL94 V-0
Insulator Material	LCP
Lead Spacing	3.81 mm
Lead Style	Solder
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	10
Operating Temperature	-40°C ~ 105°C
Pitch	3.81mm
Positions Per Level	10
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage	300 V
