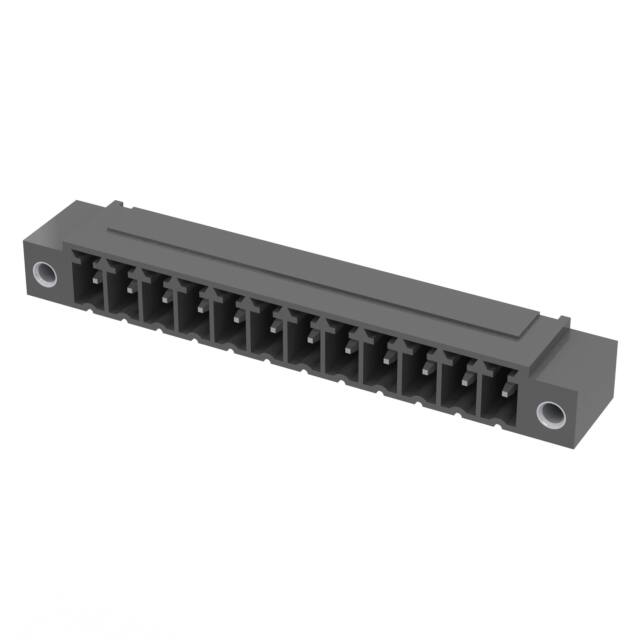

691701320012B Würth Elektronik 691701320012B is a 3.81mm pitch, 12-position vertical terminal block header with shrouded (4 side) design. It features through-hole mounting, tin-plated contacts, and a mating flange.
Mfr Part #:

691701320012B

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik 691701320012B is a 3.81mm pitch, 12-position vertical terminal block header with shrouded (4 side) design. It features through-hole mounting, tin-plated contacts, and a mating flange.
✓ Total Stock: 92 pcs
$ Price Range: $6.22

691701320012B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
92 pcs
On Request
92 pcs On Request 10 On Request On Request On Request On Request On Request
