| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Header Orientation | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage |

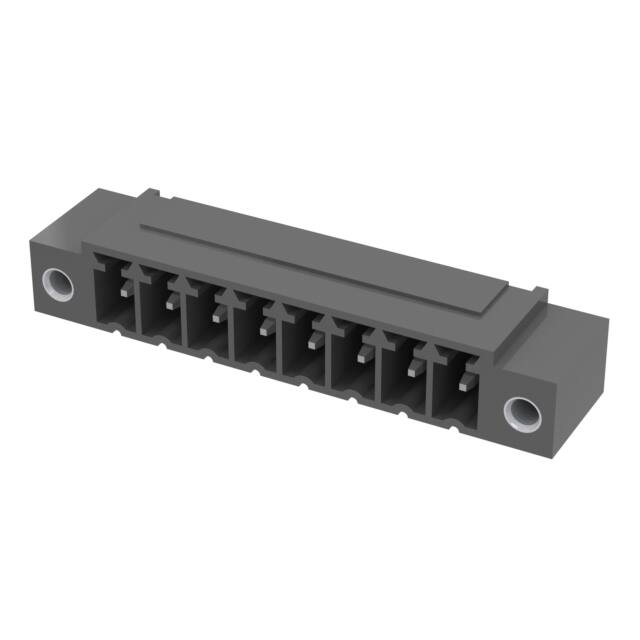

The Würth Elektronik 691701320008B is a 8-position, 3.81mm pitch terminal block header from the WR-TBL Series 7013. It is a vertical, shrouded (4 side) header with male pins and a mating flange for secure connections. The header is designed for through hole mounting with solder termination.
Electrically, it is rated for 300V/10A under cULus and 250V/8A under VDE standards. Withstanding voltage is 1600V (cULus) and 1400V (VDE), with a maximum contact resistance of 20mΩ. The operating temperature range is -40°C to +130°C per datasheet.
Mechanically, the header uses an LCP insulator with UL94 V-0 flammability rating, brass pins with tin over nickel plating, and a black color. The mating flange includes an M2.5 screw for additional retention. The component is RoHS compliant and REACH conform.
This header is suitable for wire-to-board applications in industrial control, automation, power supplies, and building automation systems. The vertical orientation allows for easy cable exit and space-efficient PCB layout.
| Qty | Low | High |
|---|---|---|
| 250+ | $4.97 | $4.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
3.81mm (0.150 inches).
10A (cULus) and 8A (VDE).
300V (cULus) and 250V (VDE).
Through hole, vertical orientation.
-40°C to +130°C (per datasheet).
Yes, it includes a mating flange with M2.5 screw.
