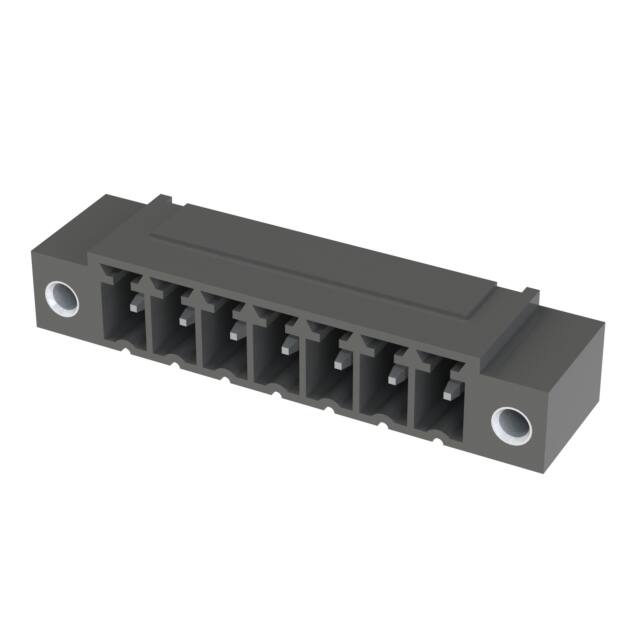

691701320007B This is a 7-position, 3.81mm pitch vertical through-hole terminal block header from Würth Elektronik's WR-TBL series. It features a shrouded design with mating flange and is rated for 10A at 300V.
Mfr Part #:

691701320007B

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
This is a 7-position, 3.81mm pitch vertical through-hole terminal block header from Würth Elektronik's WR-TBL series. It features a shrouded design with mating flange and is rated for 10A at 300V.
✓ Total Stock: 1,000 pcs
$ Price Range: $4.51

691701320007B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 5 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691701320007B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Color
Contact Mating Finish
Contact Resistance
Current
Current Rating
Features
Halogen Free
Header Orientation
Industrial Grade
Insulator Flammability Rating
Insulator Material
Lead Spacing
Lead Style
Length
Medical Grade
Military Grade
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

691701320007B Description

Short technical summary and product information.

The Würth Elektronik 691701320007B is a 7-position, 3.81mm pitch terminal block header from the WR-TBL 7013 series. It features a vertical through-hole mounting design with male pins and a shrouded (4 side) header that incorporates an integrated mating flange for secure wire-to-board connections.



Electrical specifications include a current rating of 10A under cULus and 8A under VDE, with a voltage rating of 300V (cULus) and 250V (VDE). The withstanding voltage is 1600V (cULus) and 1400V (VDE), with a maximum contact resistance of 20mΩ. The operating temperature range is -40°C to 105°C.



Mechanically, the header is constructed with a black LCP insulator rated UL94 V-0, brass pins with tin over nickel plating, and an M2.5 flange screw. The overall length is 17.81mm with a pin-to-pin spacing of 3.81mm. The termination style is solder, requiring through-hole assembly.



This component is RoHS3 compliant and REACH, with cULus (E315414) and VDE (40058871) approvals. It is designed for use in general electronic equipment requiring reliable terminal block connections.

691701320007B Quick Information

Product Type: Header, Male Pins, Shrouded (4 Side)
Series: 7013
Canonical Name: WR-TBL 7013 3.81mm Pitch 7-Position Vertical PCB Header, Through Hole
Subcategory: Terminal Block Headers

691701320007B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Yes

691701320007B Estimated Pricing

Qty Low High
250+ $4.51 $4.51

Estimated market price range - modelled values for guidance only, not live distributor offers.

691701320007B Features

  • 7 positions with 3.81mm pitch spacing.
  • Vertical through-hole mounting design.
  • Shrouded header with integrated mating flange.
  • Rated for 10A (cULus) and 8A (VDE).
  • UL94 V-0 rated LCP insulator.

691701320007B Applications

  • Provides reliable PCB-to-wire connections.
  • Suitable for industrial control and automation.
  • Used in power supply and distribution systems.
  • Ideal for general electronic equipment applications.

691701320007B FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

7 positions.

What is the pitch of this terminal block header?

The pitch is 3.81mm (0.150 inches).

What is the current rating of this header?

The current rating is 10A under cULus and 8A under VDE.

What is the voltage rating?

The voltage rating is 300V under cULus and 250V under VDE.

What is the mounting type?

Through hole mounting with solder termination.

Is this header RoHS compliant?

Yes, it is RoHS3 compliant.

What is the operating temperature range?

The operating temperature range is -40°C to 105°C.
