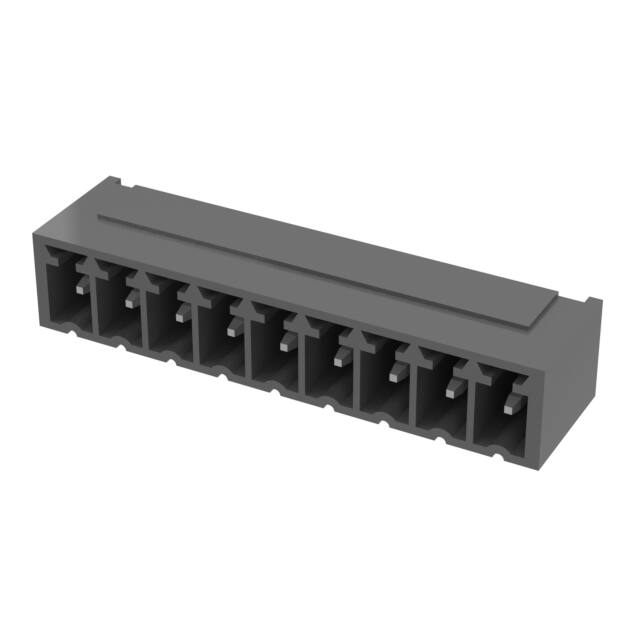

691701310009B WR-TBL Series 7013 PCB header by Würth Elektronik with 9 positions, 3.81mm pitch, vertical orientation, through hole mounting, and tin-plated brass pins.
Mfr Part #:

691701310009B

Available from 2 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
WR-TBL Series 7013 PCB header by Würth Elektronik with 9 positions, 3.81mm pitch, vertical orientation, through hole mounting, and tin-plated brass pins.
✓ Total Stock: 127 pcs
$ Price Range: $4.28

691701310009B Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
121 pcs
On Request
121 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691701310009B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Contact Resistance
Current
Current Rating
Halogen Free
Header Orientation
Industrial Grade
Insulator Flammability Rating
Insulator Material
Lead Spacing
Lead Style
Length
Military Grade
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

691701310009B Description

Short technical summary and product information.

The Würth Elektronik 691701310009B is a 9-position shrouded header from the WR-TBL Series 7013 terminal block family. It features a 3.81mm pitch and vertical pin orientation, making it suitable for PCB-to-wire connections in control and power distribution applications.



The header is rated for 10 A current (cULus) or 8 A (VDE) and 300 V working voltage (cULus) or 250 V (VDE). The insulator is molded from LCP with UL94 V-0 flammability rating, and contacts are brass with tin over nickel plating. Operating temperature range is -40°C to 105°C.



Through hole termination with solder connection ensures reliable mechanical and electrical attachment. The four-sided shrouded design protects pins during mating and handling.

691701310009B Quick Information

Product Type: PCB Header
Series: 7013
Canonical Name: WR-TBL Series 7013 PCB Header, 9 Position, 3.81mm Pitch, Through Hole, Vertical, Shrouded
Subcategory: Shrouded Header

691701310009B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

691701310009B Estimated Pricing

Qty Low High
250+ $4.28 $4.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

691701310009B Features

  • 9 positions with 3.81mm pitch spacing.
  • Through hole mounting with solder termination.
  • Rated 10 A at 300 V AC (cULus).
  • Shrouded 4-side header design for protection.
  • LCP insulator rated UL94 V-0 flammability.

691701310009B Applications

  • PCB-to-wire connections in industrial controls.
  • Power supply and distribution boards.
  • Automation and PLC I/O modules.
  • HVAC and building management equipment.

691701310009B FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 691701310009B have?

9 positions in a single level with 3.81mm pitch.

What is the pitch of this header?

3.81mm (0.150 inches).

What is the current rating for the 691701310009B?

10 A per cULus, 8 A per VDE standards.

What is the voltage rating for this part?

300 V AC (cULus) or 250 V AC (VDE).

What is the mounting type for the 691701310009B?

Through hole with solder termination.

What is the operating temperature range?

-40°C to 105°C.
