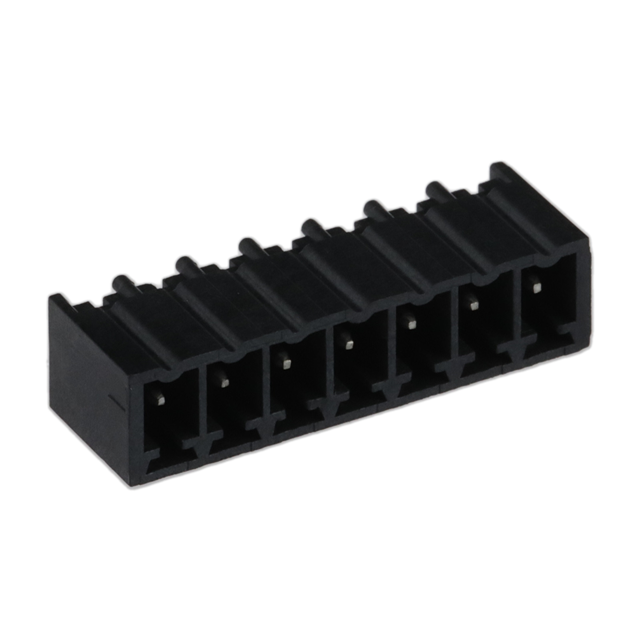

691701310007B 7-position, 3.81mm pitch terminal block header from Würth Elektronik with male pins and shrouded design. Rated for 10A (cULus) and 250V (VDE).
Mfr Part #:

691701310007B

Available from 2 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
7-position, 3.81mm pitch terminal block header from Würth Elektronik with male pins and shrouded design. Rated for 10A (cULus) and 250V (VDE).
✓ Total Stock: 367 pcs
$ Price Range: $3.37

691701310007B Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
207 pcs
On Request
207 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
160 pcs
On Request
160 pcs On Request 16 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691701310007B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Contact Resistance
Current
Depth
Header Orientation
Industrial Grade
Insulator Flammability Rating
Insulator Material
Lead Spacing
Lead Style
Length
Military Grade
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Termination Style
Type
Voltage
Width
View Similar Products (0)

691701310007B Description

Short technical summary and product information.

The Würth Elektronik 691701310007B is a 7-position, 3.81mm pitch pluggable terminal block header from the 7013B series. This shrouded male pin header features a vertical orientation and through-hole mounting with solder termination, making it suitable for fixed PCB applications requiring secure mating with female plugs.



Electrical ratings are 10A for cULus and 8A for VDE, with voltage ratings of 300V (cULus) and 250V (VDE). Withstanding voltage is 1600V (cULus) and 1400V (VDE) for 1 minute. Contact resistance is maximum 20 mOhm, ensuring reliable connections. The operating temperature range is -40°C to 130°C.



Constructed with a black LCP (Liquid Crystal Polymer) insulator rated UL94 V-0 for flammability, and brass pins with tin over nickel plating. Body dimensions are 22.86mm length, 9.2mm depth, and 7.3mm width.

691701310007B Quick Information

Product Type: Terminal Block Header
Series: 7013B
Canonical Name: 7-Position 3.81mm Pitch Through Hole Header, Male Pins, Shrouded (4 Side)
Subcategory: Pluggable Terminal Block Headers

691701310007B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

691701310007B Estimated Pricing

Qty Low High
250+ $3.37 $3.37

Estimated market price range - modelled values for guidance only, not live distributor offers.

691701310007B Features

  • 7-position 3.81mm pitch shrouded header.
  • Rated 10A (cULus) and 8A (VDE).
  • Through-hole mounting with solder termination.
  • UL94 V-0 rated LCP insulator material.
  • Tin-plated brass contacts.

691701310007B Applications

  • Used in industrial control panels.
  • Suitable for power supply connections.
  • Ideal for factory automation equipment.

691701310007B FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

7 positions on a single level.

What is the pitch of the header?

3.81mm (0.150 inches).

What are the current ratings?

10A for cULus, 8A for VDE.

What are the voltage ratings?

300V for cULus, 250V for VDE (AC).

What is the mounting type?

Through hole with solder termination.

What is the insulator material and flammability rating?

LCP (Liquid Crystal Polymer) with UL94 V-0 rating.
