| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
690 pcs
|
690 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
386 pcs
|
386 pcs | On Request | 1 | On Request | On Request | NDC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

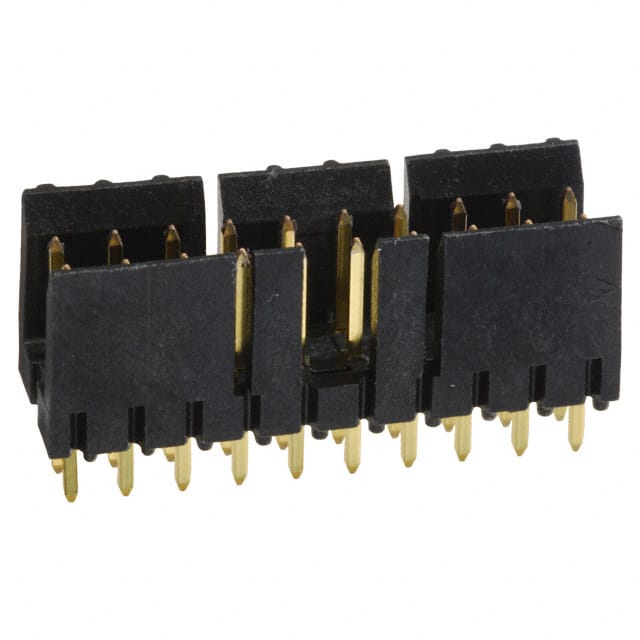

The Amphenol ICC 69168-120HLF is a 20-position, 2-row shrouded header with male pin contacts. It features a 2.54mm (0.100") pitch and row spacing, making it compatible with standard ribbon cable and board-to-wire applications. The through-hole mounting and solder termination provide a reliable mechanical connection to the PCB. The shrouded design with 2 walls and a friction lock fastening type ensures secure mating and prevents accidental disconnection. Contact material is phosphor bronze with a gold or Gold, GXT™ finish 30.0µin thick, offering excellent conductivity and corrosion resistance. The black insulation is made of material rated UL94 V-0 for flammability, suitable for various industrial and consumer electronics environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.21 | $3.21 |
| 10+ | $2.73 | $2.73 |
| 100+ | $2.32 | $2.32 |
| 800+ | $2.00 | $2.00 |
| 1,600+ | $1.91 | $1.91 |
| 5,600+ | $1.75 | $1.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions, all loaded.
2.54mm (0.100").
Through hole, solder termination.
Yes, it is a shrouded header with 2 walls.
Friction lock for secure mating.
Gold or Gold, GXT™ with 30.0µin thickness.
UL94 V-0.
