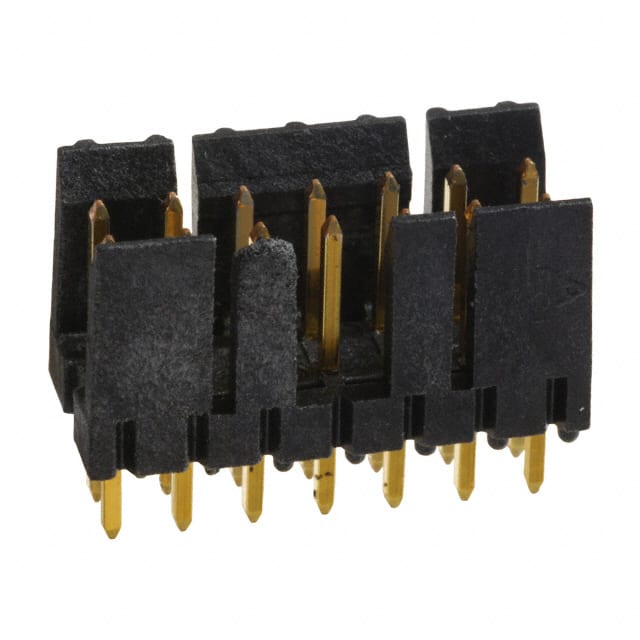

69168-114 The 69168-114 is a 14-position, 2-row shrouded header connector from Amphenol ICC. It features a 2.54mm pitch, through hole mounting, and gold-plated phosphor bronze contacts.
Mfr Part #:

69168-114

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
The 69168-114 is a 14-position, 2-row shrouded header connector from Amphenol ICC. It features a 2.54mm pitch, through hole mounting, and gold-plated phosphor bronze contacts.
✓ Total Stock: 3,200 pcs
$ Price Range: $1.25 - $2.32

69168-114 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
3,200 pcs
On Request
3200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

69168-114 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Termination
View Similar Products (0)

69168-114 Description

Short technical summary and product information.

The Amphenol ICC 69168-114 is a 14-position, 2-row shrouded header connector designed for board-to-cable/wire applications. It features a 2.54mm (0.100") pitch and a 2-wall shrouded design for improved mating alignment and protection. The contacts are male pins made of phosphor bronze with a 30µin gold or Gold, GXT™ finish, ensuring reliable conductivity and corrosion resistance. The insulation is black, rated UL94 V-0 for flammability, and has a height of 9.80mm (0.386"). The overall contact length is 0.700" (17.78mm) with a mating contact length of 5.84mm (0.230"). A friction lock fastening type provides secure retention. Termination is through hole solder, and all 14 positions are loaded. The connector is RoHS3 compliant (unverified) and has an MSL of 1 (unlimited).

69168-114 Quick Information

Product Type: Header Connector
Canonical Name: Header, Male Pins, 14 Position, 2.54mm Pitch, Through Hole, Shrouded
Subcategory: Male Pins

69168-114 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

69168-114 Estimated Pricing

Qty Low High
1+ $2.32 $2.32
10+ $1.97 $1.97
100+ $1.67 $1.67
500+ $1.49 $1.49
3,200+ $1.31 $1.31
6,400+ $1.25 $1.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

69168-114 Features

  • 14-position, 2-row shrouded header.
  • 2.54mm pitch for standard spacing.
  • Gold-plated phosphor bronze contacts.
  • Friction lock for secure connection.
  • Through-hole solder termination.

69168-114 Applications

  • Board-to-cable/wire interconnections.
  • Applications requiring friction lock retention.

69168-114 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 69168-114 header have?

It has 14 positions arranged in 2 rows.

What is the pitch of this connector?

The pitch is 2.54mm (0.100").

What is the mounting type?

Through hole with solder termination.

What is the contact material and finish?

Contacts are phosphor bronze with a 30µin gold or Gold, GXT™ finish.

Is the header shrouded?

Yes, it is a 2-wall shrouded header.

What is the insulation material flammability rating?

UL94 V-0.

What fastening type does it use?

Friction lock.
